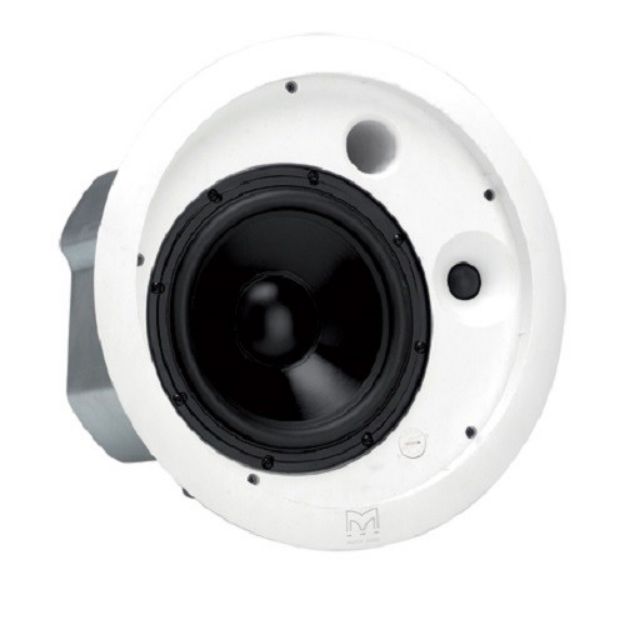

The C8.1T has been specifically designed for higher ceilings where its high SPL capability and controlled 90° dispersion enable it to provide excellent intelligibility in more reverberant rooms. It features an 8" (200mm) unit with a carbon fibre loaded, polypropylene cone and a 1" (25mm) horn-loaded dome tweeter mounted side-by-side for optimum dispersion and smooth response off-axis. The enclosure is ported to extend the low frequency performance and the 5-point mounting system ensures that installation is fast and secure. Input and link terminals make paralleling units a simple operation and a steel cover plate protects the input connector against fire.
These products comply with UL2043 Fire Tests for Heat & Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces.
Listed UL1480 General Signalling Speakers.
•Two-way high performance flush mounting ceiling speaker
•8" (200mm) UL94V-0 carbon fibre loaded polypropylene
cone bass
•Wide dispersion – 90° conical up to 7kHz
•High & low impedance operation – transformer included
•110dB max SPL @ 1 metre (16 ohm)
•125 watt power handling (60W through transformer)
•Polyswitch and thermal fuse protected
•Steel backcan
•UL2043 & UL1480
TYPE Ceiling mounted, two-way vented enclosure
FREQUENCY RESPONSE 80Hz-18kHz ± 3dB -10dB @ 50Hz
DRIVERS 8" (200mm) UL94V-0 PP bass driver 1" (25mm) dome tweeter
RATED POWER 125W AES, 500W peak
RECOMMENDED AMPLIFIER MA2.8Q
SENSITIVITY 91dB
MAXIMUM SPL 110dB continuous, 116dB peak
NOMINAL IMPEDANCE 16 ohms
DISPERSION (-6dB) 90° conical up to 7kHz
CROSSOVER 3kHz passive
ENCLOSURE Steel backcan
FINISH Bezel & grille – white UV resistant Overpaintable
Backcan – zinc plated
PROTECTIVE GRILLE Perforated steel
CONNECTORS Rising clamp plug and socket
ACCESSORIES (included) 60W 70/100V line transformer
Tile rails C bracket Paint mask Cut-out template
VOLTAGE TAPS
100V – 60W, 30W, 15W
70V – 60W, 30W, 15W, 7.5W
DIMENSIONS (OD) 354mm x (D) 258mm
CUT-OUT DIAMETER 308mm
WEIGHT 6.7kg
DIMENSIONS (OD) 354mm x (D) 258mm
CUT-OUT DIAMETER 308mm
WEIGHT 6.7kg
