Features

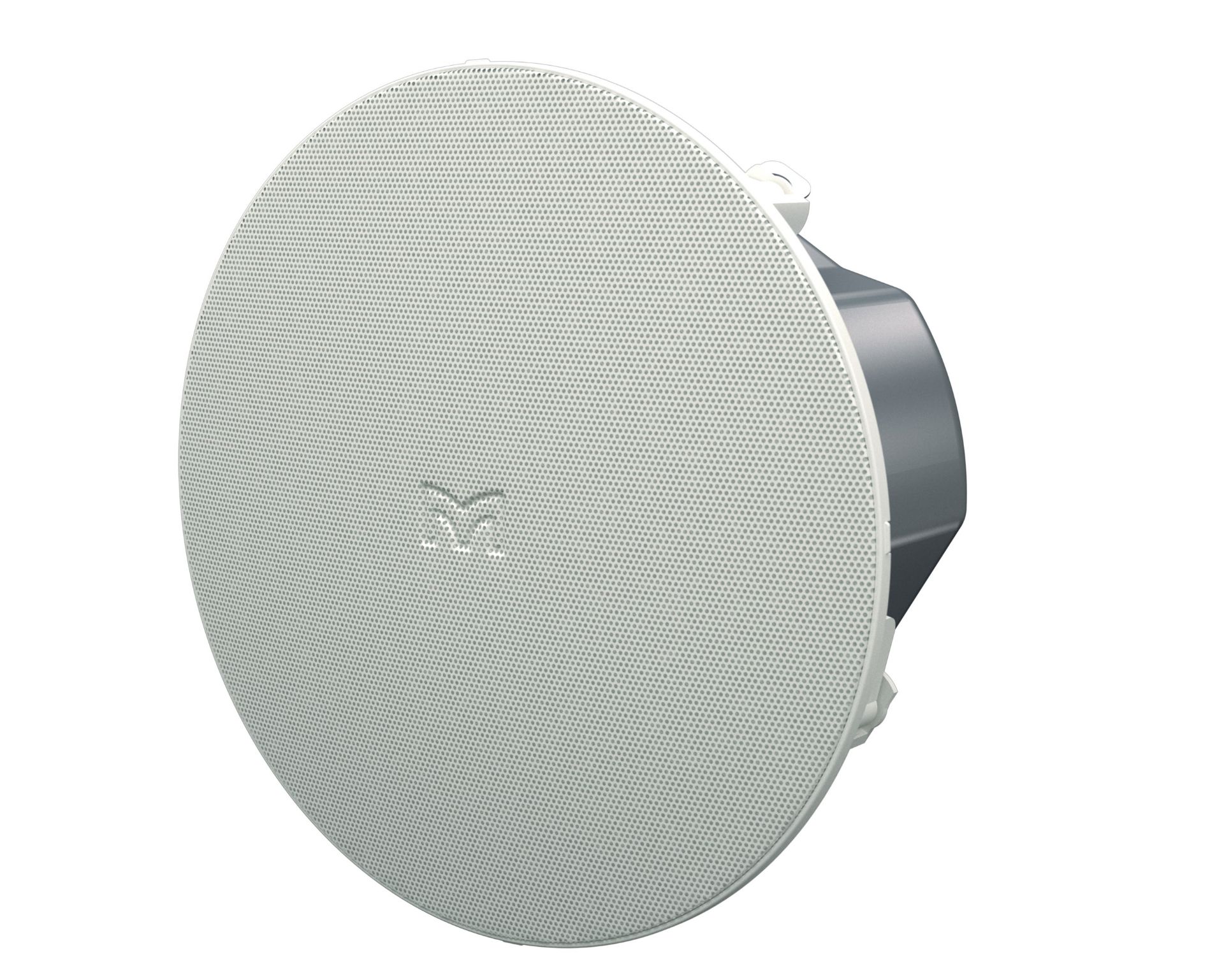

Compact two way ceiling speaker, shallow backcan
5.25” (100mm) LF driver and 0.75” (19mm) HF dome tweeter
Wide 150° conical coverage pattern reduces speaker count required for even coverage
70V/100V multi-tap line transformer or 16 Ohm low impedance operation
Low and high frequency overload protection
UL94V-0 rated baffle with zinc plated steel backcan
Quick release, bezel less grille
Tile rails and C ring included
5 year warranty
Specifications
TYPE Compact, passive two-way ceiling speaker, ported bass reflex
FREQUENCY RESPONSE 98Hz-20kHz ± 3dB -10dB @ 62Hz
DRIVERS
LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
HF: 0.75” silk dome, neodymium motor
RATED POWER 50W AES, 200W peak
RECOMMENDED AMPLIFIER VIA2004 (for low impedance operation)
SENSITIVITY 90dB / 1W(4V) / 1m
MAXIMUM SPL 113dB peak
NOMINAL IMPEDANCE 16O
DISPERSION (-6DB) 150° conical up to 7kHz
CROSSOVER 3kHz passive (LF and HF auto resetting fuses)
TRANSFORMER TAPS
70V: 30w / 15w / 7.5w / 3.75w
100V: 30w / 15w / 7.5w
RECOMMENDED HIGH PASS FILTER 65Hz 24dB/oct
ENCLOSURE UL 94V-0 rated ABS baffle with steel backcan
FINISH Baffle and grille: RAL9016 white Backcan: zinc plated
GRILLE Perforated steel, powder coated, bayonet fitting
CONNECTORS Ceramic connector (in and link) located behind fire retardant steel cover
ACCESSORIES (INCLUDED)
2 tile rails
C ring backing plate
Cut out template
DIMENSIONS
(OD) 245mm x (D) Back Can 100mm, (D) Inc. Grille 118mm
WEIGHT 2.8kg WEIGHT 2.8kg (6.2lbs)
