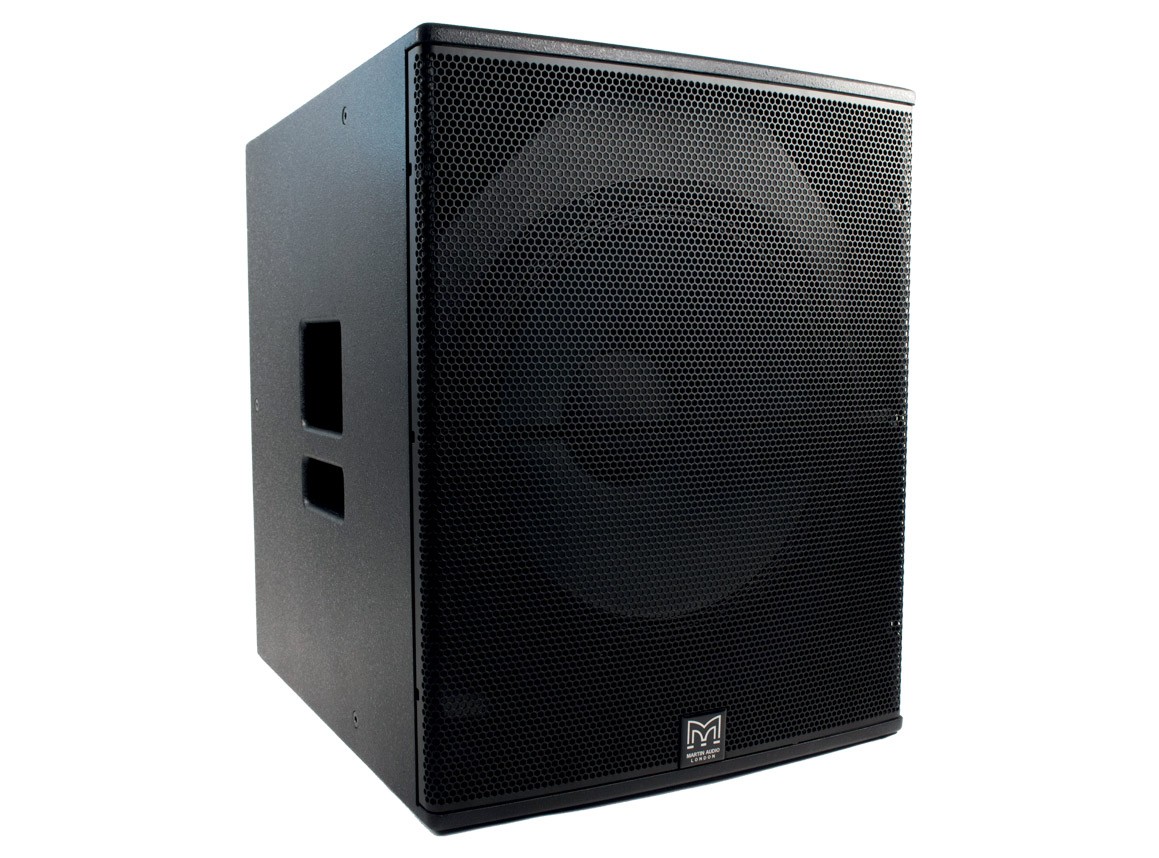

The X118 is a compact, high performance subwoofer for use with BlacklineX Series full range loudspeakers. It extends the low frequency operating range of the combined system to 42Hz and provides exceptional low frequency impact. It can be used singly, stacked or flown via integral M10 insets and features a long excursion 18” (460mm)/3” (75 mm) voice coil driver in a compact reflex enclosure. Its four reflex ports have a large frontal area to reduce turbulent air noise at very high levels.
The X118 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finishes available to special order. An impact resistant perforated steel grille protects the driver, and the enclosure has a 35mm pole mount fitting in the top surface and two side handles for ease of handling. Rubber feet on the base of the enclosure resist movement and align with recesses in the top surface for stable stacking.
When used with BlacklineX Series full range systems, crossover and EQ functions can be performed by the DX0.5 system controller or by an MA Series amplifier with onboard DSP option.
Compact, direct radiating subwoofer
FREQUENCY RESPONSE 42Hz-150Hz ± 3dB, -10dB @ 38Hz
DRIVER 18” (460mm)/3” (75mm) voice coil, long excursion, ferrite magnet
RATED POWER 500W AES, 2000W peak
RECOMMENDED AMPLIFIER MA3.0, MA5.0Q
SENSITIVITY 104dB
MAXIMUM SPL 131dB continuous, 137dB peak (half space)
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6dB) Omnidirectional
CROSSOVER 80-120Hz active
ENCLOSURE Birch/poplar ply
FINISH Black textured paint
GRILLE Black perforated steel
CONNECTORS 3 x NL4 type
PIN CONNECTIONS (INPUT) 1+/1-
PIN CONNECTIONS (LINK) A: 1+/- to 1+/-, B: 2+/- to 1+/-
FITTINGS 16 x M10 inserts, pole mount socket, 2 x bar handles, provision for castors
DIMENSIONS (W) 530mm x (H) 669mm x (D) 640mm
WEIGHT 33kg
