The X15 is a very high power, passive two way system designed for professional portable applications and installations that demand the ultimate in sonic performance from a single enclosure. With an accurately defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and impact.
It features a powerful 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm for extended high frequency response.

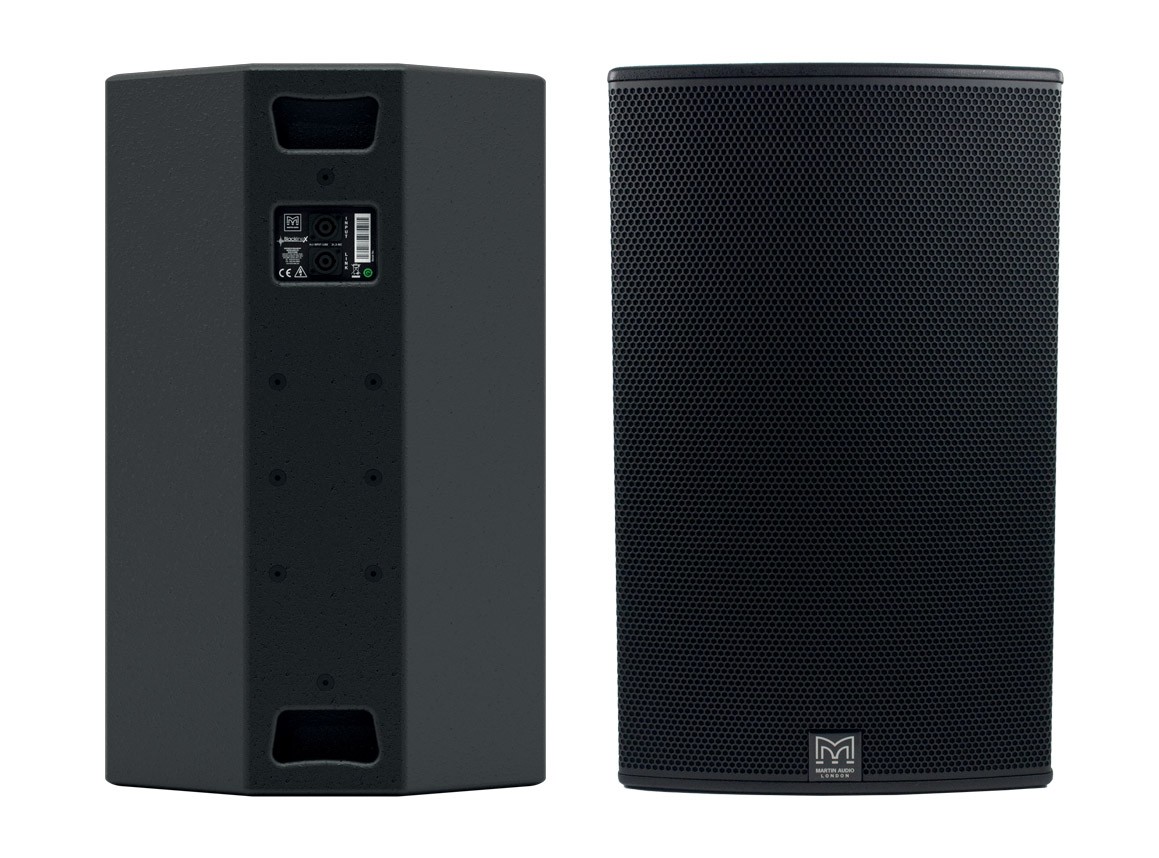

The X15 is constructed from plywood and fitted with a screw free steel grille, M8 inserts for a wall bracket and eyebolt suspension, plus a pole mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint as standard, the X15 can also be supplied in white or any RAL colour to order.
A full range passive two way system, the X15 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximise its capabilities. When supplemented by a BlacklineX subwoofer, crossover and EQ functions can be performed by the DX0.5, or by an MA Series amplifier with onboard DSP option.
High power, passive two way system
FREQUENCY RESPONSE 55Hz-20kHz ± 3dB, -10dB @ 45Hz
DRIVER LF: 15” (380mm)/3” (75mm) voice coil, ferrite motor system
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER 400W AES, 1600W peak
RECOMMENDED AMPLIFIER MA3.0, MA5.0Q
SENSITIVITY 99dB
MAXIMUM SPL 125dB continuous, 131dB peak
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6dB) 80° H x 50° V (user-rotatable)
CROSSOVER 2.2kHz passive
ENCLOSURE Multi angle birch/poplar ply
FINISH Black textured paint
GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type
PIN CONNECTIONS (INPUT) 1+/1-
PIN CONNECTIONS (LINK) 1+/- to 1+/-
FITTINGS 19 x M8 inserts, pole mount socket, 2 x bar handles
DIMENSIONS (W) 427mm x (H) 690mm x (D) 419mm
WEIGHT 24kg WEIGHT 24kg
