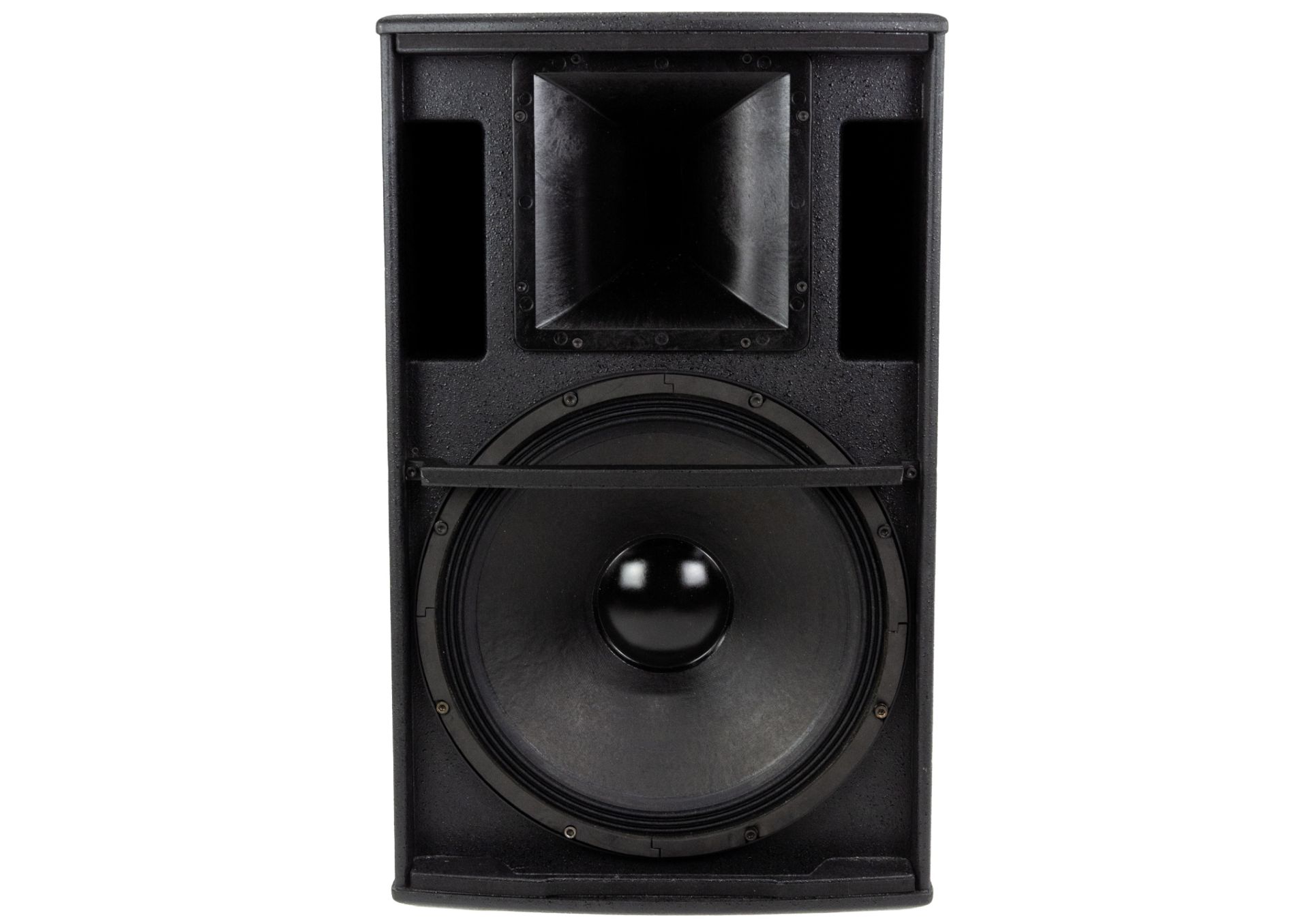

The high power Blackline XH15 provides improved performance over the Blackline X15 in a wide bandwidth system and a compact and efficient package. Extended frequency response is provided by a 15” (380mm) LF driver and a 1.4” (35mm) exit compression driver mounted on a rotatable 80° x 50° constant directivity HF horn.
Specification;
TYPE Compact, two way passive
FREQUENCY RESPONSE 55Hz-18kHz ± 3dB, -10dB @ 45Hz
DRIVER 15" (380mm)/3" (75mm) voice coil, neodymium magnet LF driver 1.4” (35mm) exit HF compression driver
RATED POWER 400W AES, 1600W peak
SENSITIVITY 100dB
MAXIMUM SPL 126dB continuous, 132dB peak
NOMINAL IMPEDANCE 8O
DISPERSION (-6DB) 80° horizontal, 50° vertical
CROSSOVER 1.4 kHz passive
ENCLOSURE 68 litre, multi laminate birch ply
FINISH Black textured paint
GRILLE Black perforated steel
CONNECTORS 2 x Neutrik NL4
PIN CONNECTIONS (INPUT) FR+,- : 1+,1- , Link thro’: 2+,2-
FITTINGS 12 x M8 threaded inserts, 1 x mounting pole socke,t 2 x pocket handles
DIMENSIONS (W) 427mm x (H) 690mm x (D) 438mm(W)
WEIGHT 28kg
The LF driver features a tough, water resistant cone and a lightweight, high BL, neodymium motor system with inside/outside coil windings for improved heat transfer. An aluminium demodulating ring reduces distortion and improves midrange clarity at high levels and increased excursion is available via a triple roll surround and deep motor structure. The HF driver utilises a titanium diaphragm with controlled break-up modes for improved sonic performance at high frequencies and the crossover design and LF cone profile have been optimised to match the directivity of the HF horn and LF section through the crossover region.
Blackline XH15 is perfect for higher power applications where ease of installation, or speed of deployment, are important factors. Its ergonomic design and rotatable HF horn makes near-ceiling mounting and aiming easy in venues with restricted height, whilst its multi-angle birch ply cabinet allows it also to be used as a high power floor monitor. Its twelve M8 inserts make a variety of horizontal or vertical mounting methods possible.
Blackline XH15 features integral; ergonomic handles for easier handling and comes with a discrete 35mm pole-mount socket for speaker stand mounting. This fitting can also be used as a pole socket when the Blackline XH15 is used with, for instance, a Blackline X118 or X218 subwoofer.
