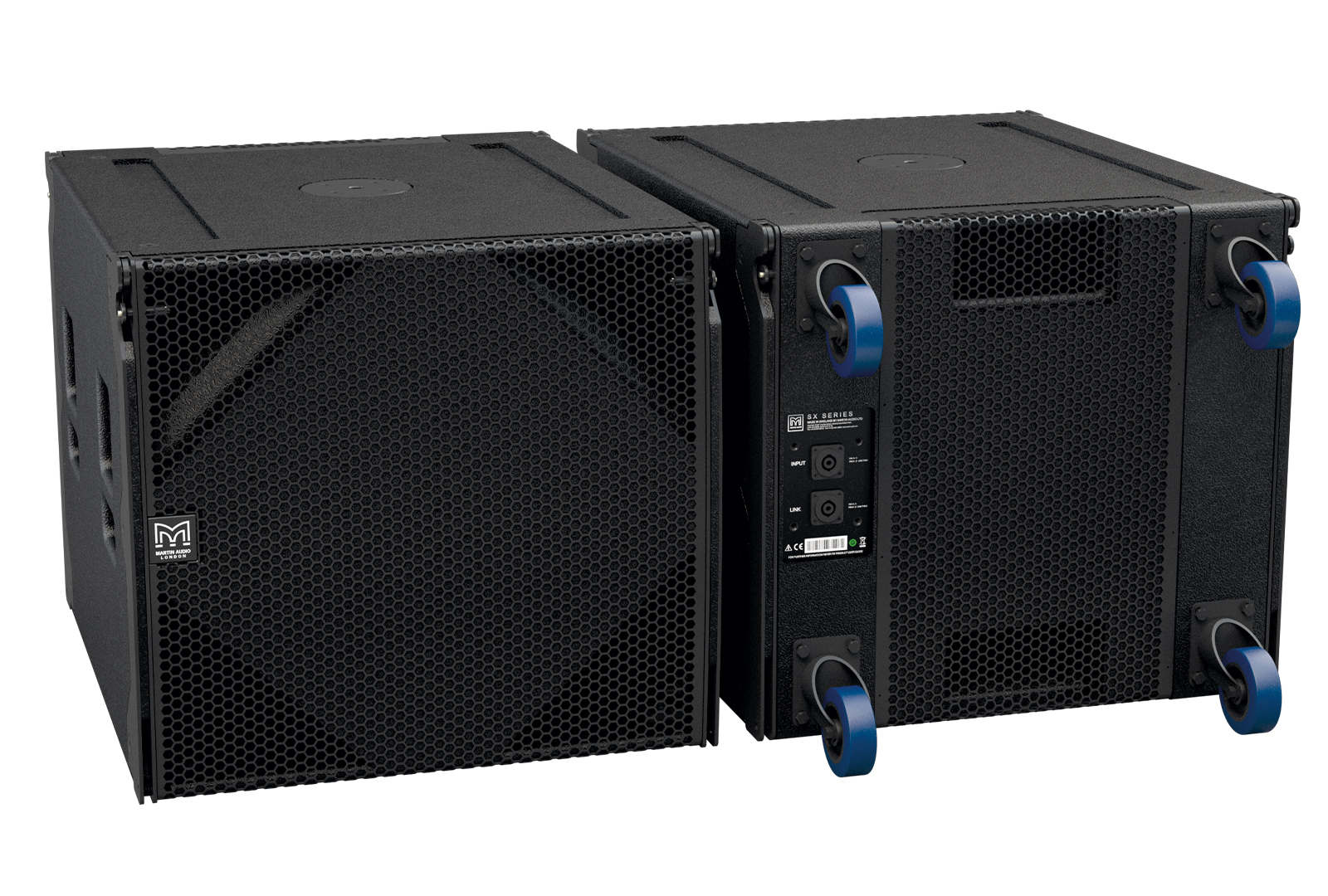

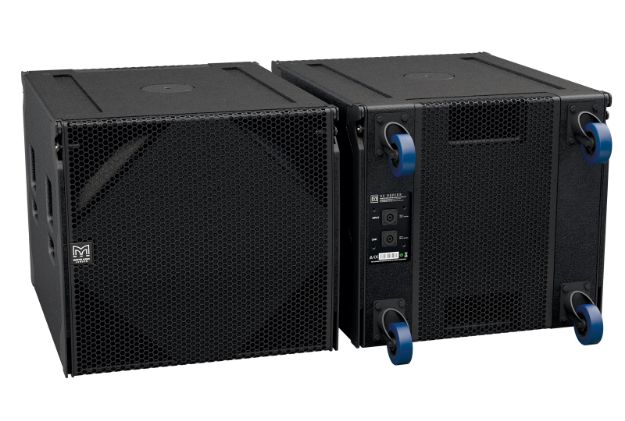

The SXCF118 is a compact, high performance cardioid subwoofer. The flown version of the SXC118, it is the ideal partner for flown WPS arrays — combining maximum low frequency output with pattern control. It features an 18” (460mm) forward facing driver and a 14” (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP. Each driver has its own chamber with optimised bass reflex porting.
Features
Compact, cardioid flown subwoofer
Front facing 18” (460mm)/4” (100mm) voice coil driver
Rear facing 14” (356mm)/3.5” (88mm) voice coil driver
Cardioid dispersion pattern
28dB rear rejection at 75Hz
High output capability
Tour grade plywood enclosure
Specification
TYPE Compact, cardioid subwoofer
FREQUENCY RESPONSE 43Hz – 150Hz ±3dB, -10dB @ 34Hz
DRIVERS
18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
14” (356mm)/3.5” (88mm) voice coil, long excursion, neodymium magnet, waterproof cone
RATED POWER
18”: 1000W AES, 4000W peak
14”: 800W AES, 3200W peak
SENSITIVITY 104dB
MAXIMUM SPL 140dB peak
NOMINAL IMPEDANCE
18”: 8O
14”: 8O
DISPERSION (-6DB) Cardioid
ENCLOSURE Multi laminate birch ply
FINISH Textured black polyurea
GRILLE Black HEX perforated steel
CONNECTORS 2 x NL4
PIN CONNECTIONS (INPUT) 18”: +1, -1; 14”: +2, -2
PINS CONNECTIONS (LINK) 18”: +1, -1; 14”: +2, -2
FITTINGS
Two skids on base, with mating channels on top
M20 top mounted thread plate for pole mounting
Two bar handles on each side
Four fittings for optional transit cover
DIMENSIONS (INCL SKIDS)
(W) 650mm x (H) 611mm x (D) 812mm (940mm incl castors)
WEIGHT
75kg , 78kg incl castors 75kg (165lbs), 78kg (172 lbs) incl castors
