OmniLine® delivers consistent audio coverage with unprecedented accuracy in a wide variety of architectural environments, using only one amplifier channel per array in many applications. By utilising a complement of unique, Martin Audio designed drivers, and mechanical alignment techniques, simple EQ and Limiting is the only processing required. A powerful software application provides extremely accurate intercabinet and array angles, in order to achieve optimum coverage over a predefined area. OmniLine's aesthetically pleasing cabinet is finished in neutral light grey.

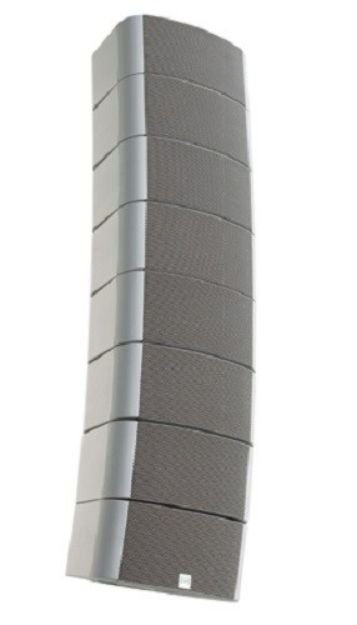

Each OmniLine array is constructed by connecting together multiple array modules. Up to 24 modules can be connected where both high output and vertical focussing down to low/mid frequencies are required. Smaller numbers of modules (down to 4) can be used for shorter-throw applications, where vertical focussing of these frequencies is less important.
Rather than applying DSP to a traditional column, OmniLine’s vertical beam-forming is achieved by physically articulating individual array modules to curve the array. The actual array configuration for a specific venue is determined by powerful, patent pending optimisation software which makes intelligent judgements about the ‘goodness’ of the array’s SPL distribution against objective target functions.
OmniLine uses a line of five custom-designed dome tweeters, with a spacing of only 21mm between each element. The result is sidelobe-free vertical dispersion from the high frequency section.
The ‘cones’ of the custom-designed LF drivers are sculpted from an ultra-light, stiff material and precisely follow the ideal contour of the HF horn walls (patent pending). This provides constant horizontal directivity from low mid, right up to extreme high frequencies
Technical specifications: one module
TYPE Two-way micro-line array module
FREQUENCY RESPONSE 85Hz-20kHz ± 3dB -10dB @ 76Hz
DRIVERS 2 x 3.5” (87mm)/1” (25mm) voice coil LF drivers 5 x 0.55” (14mm) soft dome tweeters
RATED POWER 50W AES, 200W peak
RECOMMENDED AMPLIFIER 100W-200W in to 16 ohms
SENSITIVITY 84dB at LF rising to 92dB at HF
MAXIMUM SPL 104dB continuous, 110dB peak
NOMINAL IMPEDANCE 16 ohms
DISPERSION (-6dB) 100º horizontal, 5º vertical
CROSSOVER 2.5 kHz passive
ENCLOSURE 4 litre ported cabinet, moulded in ABS
FINISH Light grey
GRILLE Light grey perforated steel
CONNECTORS 4 pole socket
PIN CONNECTIONS +/- in, +/- link out
FITTINGS Captive inter-connecting bracket assembly 6 x M8 fixings for wall and flying brackets
DIMENSIONS (W) 246mm x (H) 115mm x (D) 198mm
WEIGHT 3.6kg
Number of modules 4, 8, 16
Sensitivity , (2.83V) 96dB 96dB 102dB
Impedance 4 ohms 8 ohms 4 ohms
Power handling (Watts, AES)
200 cont. 400 cont. 800 cont.
800 peak 1600 peak 3200 peak
Maximum SPL (cont./peak) 116dB/122dB 122dB/128dB 128dB/134dB
Max coverage distance 8-12m 16-25m 25-40m
Array length 0.47m 0.94m 1.9m
Array mass 14.4kg 28.8kg 57.6kg Array mass 14.4kg 28.8kg 57.6kg
