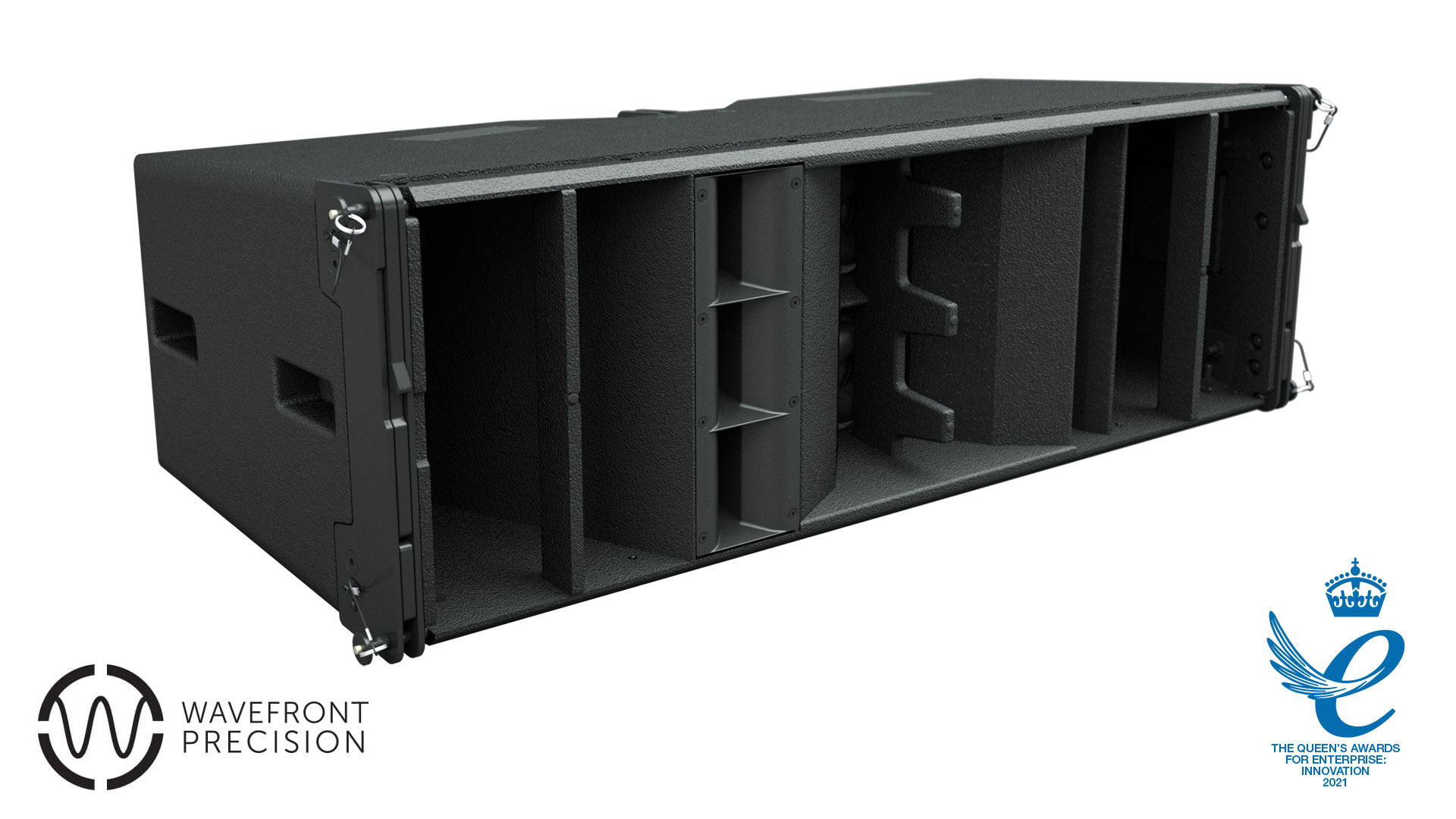

WPL is an optimised line array module with a biamplified three way horn design. 2 x 12" LF/ 2 x 6.5" MF/ 3 x 1" HF in a single enclosure. WPL elements are matched with the IK42 and with Martin Audio display to allow the user to specify the resolution to which the system is optimised from 1 to 2 per circuit. 90º horizontal, with peak SPL’s of 140/139/145dB @ 1m from a single, compact enclosure
TYPE Three way, bi amp line array element
FREQUENCY RESPONSE (5) 52Hz-18kHz ± 3dB
DRIVERS LF: 2 x 12” (300mm)/3” (75mm) voice coil, ultra longexcursion, neodymium magnet drivers, Hybrid® bass horn loaded
MF: 2 x 6.5” (165mm)/2” (50mm) coil, neodymium magnet drivers, horn loaded
HF: 3 x 1” (25mm) exit neodymium magnet compression drivers, horn loaded
SYSTEM AMPLIFIER iKON iK42
SYSTEM RESOLUTION 1 or 2 enclosures per pair of amplifier channels (Bi-amp)
MAXIMUM SPL (9) LF: 139dB
MF: 140dB
HF: 145dB
NOMINAL IMPEDANCE LF: 8 ohms, MF + HF: 8 ohms
DISPERSION 90º horizontal (-6dB), 120º horizontal (-10dB) 7.5° vertical
CROSSOVER 320Hz active, 4kHz internal passive
ENCLOSURE Vertical trapezoid with 3.75º wall angle, multi laminate birch and poplar ply construction
FINISH Black textured paint
GRILLE Black HEX perforated steel
CONECTORS 2 x NL4 type
PIN CONNECTIONS LF: 1+/1-, MF + HF: 2+/2-
FITTINGS 3 point rigging system, 4 x side pocket handles
FLOWN ARRAY MAXIMUM 24 enclosures in single array
DIMENSIONS (ex. pins) (W) 1136mm x (H) 371mm x (D) 526mm
WEIGHT 64kg
ACCESSORIES Touring flying frame
Install flying frame
Dolly for 4 enclosures
Ground stack outrigger
Flying Pin Flying Pin
