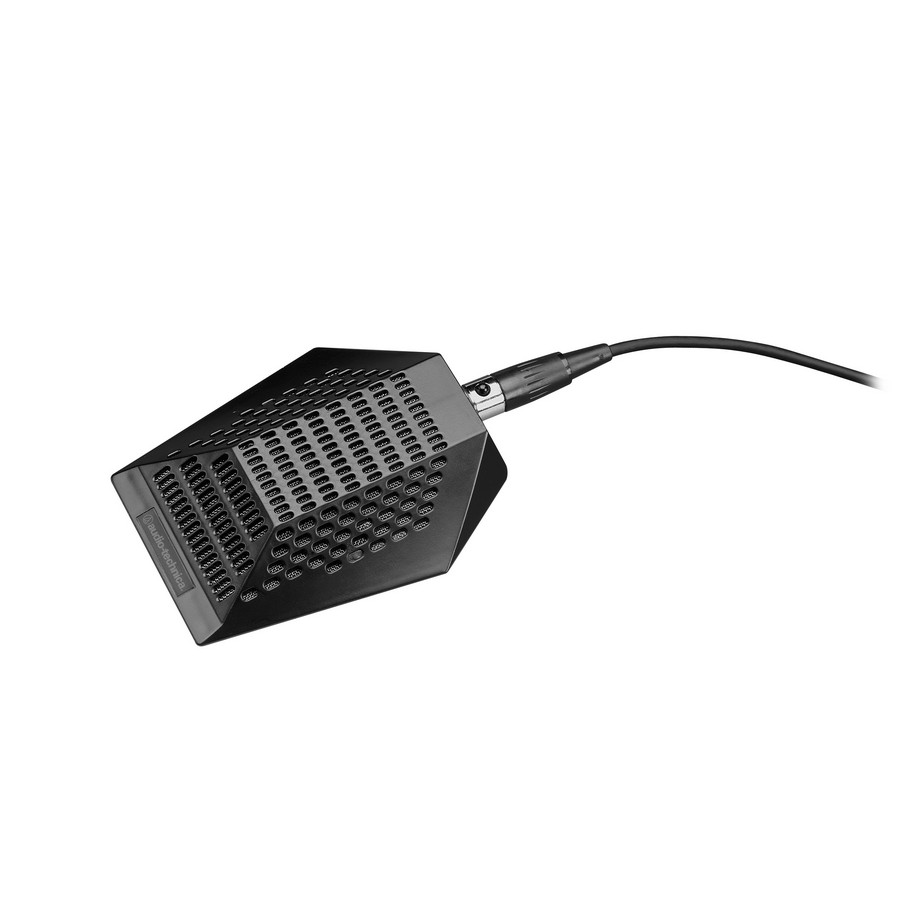

With its half space unidirectional polar pattern, low profile design, and outstanding sound quality, the PRO 44 is ideal for conference tables, podiums, lecterns and other installed sound uses. This versatile boundary mic’s self contained electronics eliminate the need for external power modules. The PRO 44 is equipped with a wide range condenser element with low mass diaphragm for superior performance.
Low profile for minimum visibility
Wide range condenser element with low mass diaphragm for superior performance
Self contained electronics eliminate need for external power modules
Rugged design and construction
7.6 m detachable cable (TA3F to XLRM-type)
ELEMENT Fixed charge back plate, permanently polarized condenser
POLAR PATTERN Half cardioid (cardioid in hemisphere above mounting surface)
FREQUENCY RESPONSE 70-16,000 Hz
OPEN CIRCUIT SENSITIVITY -25 dB (56.2 mV) re 1V at 1 Pa
IMPEDANCE 100 ohms
MAXIMUM INPUT SOUND LEVEL 114 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 86 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 66 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 9-52V, 2 mA typical
WEIGHT 67 g
DIMENSIONS 73.0 mm maximum width, 3.56" (90.5 mm) maximum length, 0.59" (15.0 mm) height
OUTPUT CONNECTOR TB3M-type
CABLE 7.6 m long, with TA3F and XLRM-type connectors CABLE 7.6 m long, with TA3F and XLRM-type connectors
