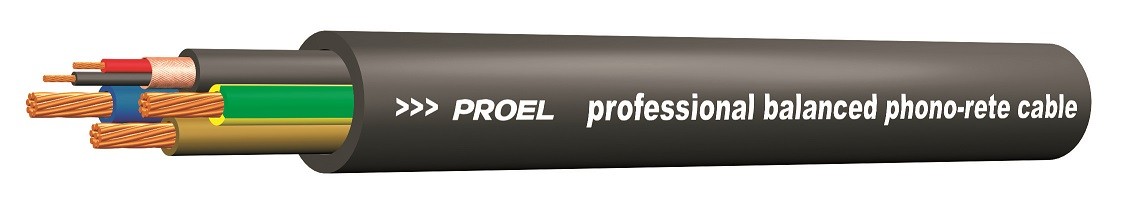

Professional combined phono-feed cable. Composed by an individual insulated and twisted audio pair + single phase electric power cable. Flexible flame resistant PVC overall jacket.
Available models:
HPC501: 2 x 0.35 mm2 Audio cable + 3 x 1.5 mm2 power conductor
HPC502: 2 x 0.35 mm2 Audio cable + 3 x 2.5 mm2 power conductor
Black colour. 100 metre wooden reel.
Priced and sold by the Metre
TECHNICAL SPECIFICATIONS
Application fields: Audio connections
Conductors: Bare copper
Power: 16 AWG = 3x29x0.25 mm (1,5 mm2)
Signal: 22 AWG = 2x11x0.20 mm (0.35 mm2)
Insulation:
Power: PVC 60 shore Ø 3.0 mm
Signal: PVC HT105 Ø 1.50 mm
Shield: Spiral red copper 4x16x0.12 90%
Jacket: Flexible PVC 60 shore Ø 10.80 mm - Complying with CEI 20-35 (IEC 332.1)regulations
Colour: Black
Electrical resistance: 12 Ohm/Km @ 20°C (Power) / 54.5 Ohm/Km @ 20°C (Signal)
Electrical capacitance: 124 pF/m (signal) @ 1 KHz
Operating temperature: -10°C / +60°C
Working tension:
Power: 300/500 V
Signal: < 50 V AC / < 75 V DC
Weight: 182 Kg/Km
Minumum bending radius: 10 x cable section radius
Packaging: 100 m wooden or wood fibre reel
