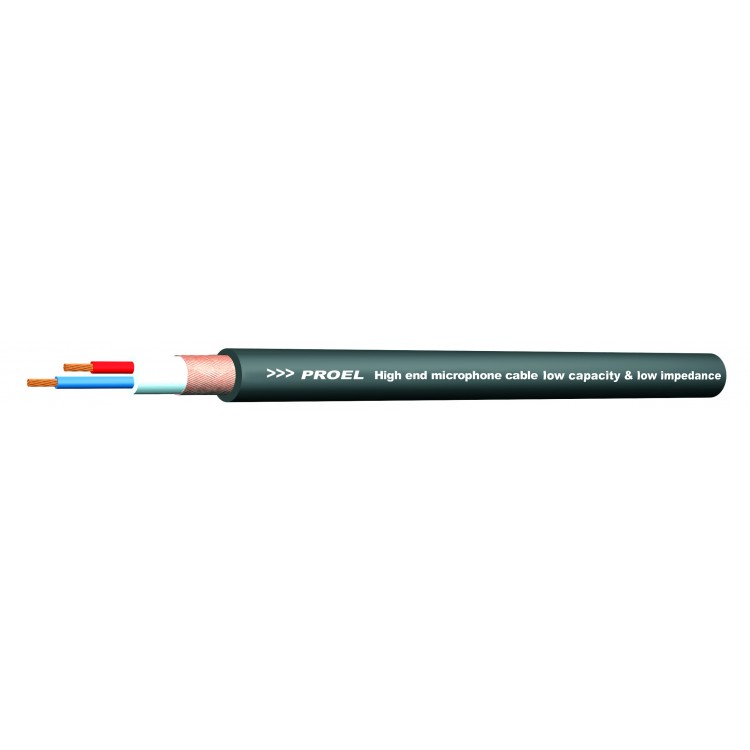

Proel Bulk Mic Cable 90% Braid Shield 7mmØ BLACK

High end professional balanced microphone cable (2 x 0,50 mm2) with flexible overall jacket - O.F.C. (Oxygen Free Copper) with inner jacket for stabilizing pair twisting.

TECHNICAL SPECIFICATIONS

Application fields: Installations / Recording studios / Professional Stage Connections / Microphone connections
Conductors: Bare copper 20 AWG = 26 x 0.15 mm (0.50 mm2)
Insulation: LDPE Ø 1.40 mm - PVC Ø 3,60 mm
Shield: Bare copper braid / 24*7*0,10 - 90%
Jacket: PVC TM2 complying with EN 50363-4-1 hardness 63± 2 Sh-A - Ø 7.00 mm
Colour: Black
Electrical resistance:
39 Ohm/Km (conductor) @ 20°C
16 Ohm/Km (shield) @ 20°C
Electrical capacitance:
55 pF/m (conductor / conductor) @ 1 KHz
120 pF/m (conductor / screen) @ 1 KHz
Velocity of propagation: 66 %
Operating temperature: -20°C / +70°C
Working tension:
< 50 V AC
< 75 V DC
Weight: 57 Kg/Km
Minumum bending radius: 15 x cable section radius
Packaging: 100 m carton reel
