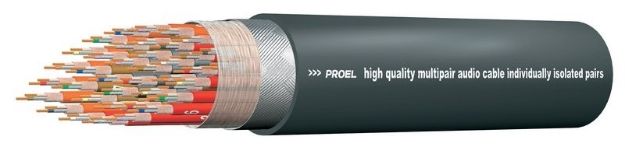

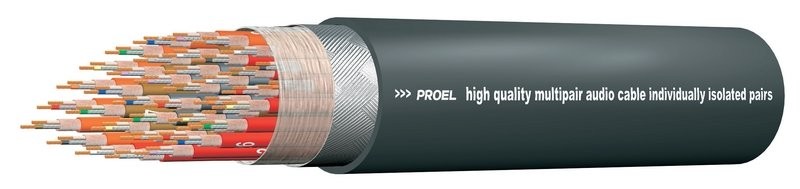

The new CMT series of multipair cables consists of 100% insulated and shielded pairs, individually numbered and coloured to allow an easy identification in order to reduce connection time and prevent expensive phasing errors. The non-abrasive PVC overall jacket offers a good flexibility even at very high temperatures. The cable extreme flexibility allows an easy winding.
Priced and sold by the Metre
TECHNICAL SPECIFICATIONS
Application fields: Live events monitoring
Recording Studio fixed installation
Stage Boxes
Conductors: Flexible bare copper
26 AWG = 18 x 0.10 mm (0.14 mm²)
Insulation: XLPE ø 1.05 mm
Display: PAIRS
Spiral bare copper 97%
CABLE
Cotton tape 100%
Tinned copper braid 85%
Drain wire: Tinned copper
24 AWG = 7 x 0.18 mm (0.22 mm²)
Jacket: PAIRS: PVC ø 2.80 mm numbered
CABLE: PVC
CMT4: ø 10.60 mm
Conductor resistance: 127 Ohm/Km @ 20°C
Shield resistance: 43 Ohm/Km @ 20°C
Conductor/conductor capacitance: 52 pF/mt @ 1KHz
Conductor/shield capacitance: 89 pF/mt @ 1KHz
Nominal Impedance: 100 Ohm ± 3 Ohm
Attenuation: 1 MHz = 2.20 dB/100 mt
3 MHz = 3.70 dB/100 mt
6 MHz = 5.30 dB/100 mt
8 MHz = 6.10 dB/100 mt
10 MHz = 6.80 dB/100 mt
Velocity of propagation: 66 %
Operating temperature: -20°C / +80°C
Working voltage: 700 V AC
1000 V DC
Minumum bending radius: 15x overall diameter
Weight: 145 Kg/Km
Colours Available: Dull black
Colour distinction: see ref. chart
Notes: 100 mt. wooden reel
