• 6 Channel Headphone Amplifier
• 6 Independent high-power amplifier sections suitable for virtually any type of headphones

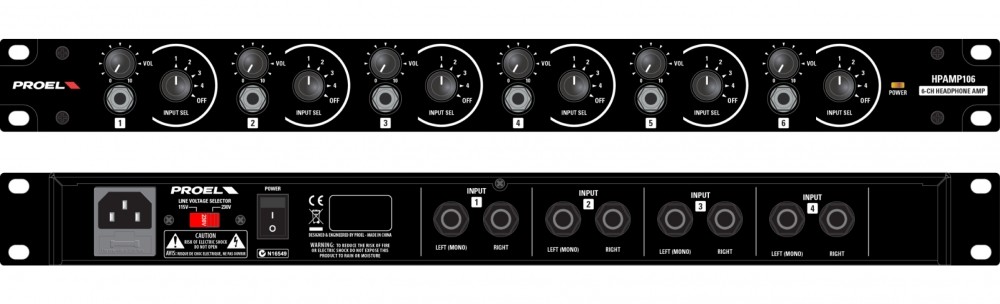

• 4 Selectable main stereo/mono inputs with ¼” JACK connectors (REAR panel)
• 6 Stereo headphone outputs with individual level controls , input selector and ¼” JACK connectors (FRONT panel)
• 300mW max output level at 32 ohm (per channel)
• Built in power supply with toroidal transformer and voltage selector.
• 19” rack mountable metal chassis
Inputs: 4 stereo
Input Impedance: 47 Kohm
Max Input Level: +25 dBu
Connectors: 2 x 1/4" jack unbalanced (each input)
Outputs: 6 stereo
Maximum output: (2x) 193 mW @ 32 ohm (each)
Load Impedance: minimum 16 ohm per channel
Max gain: +13 dB each channel
Connector: 1/4" jack stereo (each output)
System Performance
• Distortion (THD): 0.02 %
• Noise: < -98 dBu unweighted
• Frequency Response: 20 Hz - 20 KHz (-3 dB)
• Controls: OUTPUT LEVEL, INPUT SELECTOR
• Indicators: Power ON
• Dimensions (W x H x D): 480 x 44 x 210 mm
• Weight: 3,9 Kg Controls OUTPUT LEVEL, INPUT SELECTOR
Indicators Power ON
Power supply Selectable 100-120 VAC, 220-240 VAC, 50-60 Hz
Dimensions (W x H x D) 480 x 44 x 210 mm
Weight 3,9 Kg Maximum output (2x) 193 mW @ 32 ohm (each)
Load Impedance minimum 16 ohm per channel
Max gain +13 dB each channel
Connector 1/4" jack stereo (each output)
System Performance
Distortion (THD) 0.02 %
Noise < -98 dBu unweighted
Frequency Response 20 Hz - 20 KHz (-3 dB)
General
Controls OUTPUT LEVEL, INPUT SELECTOR
Indicators Power ON
Power supply Selectable 100-120 VAC, 220-240 VAC, 50-60 Hz
Dimensions (W x H x D) 480 x 44 x 210 mm
Weight 3,9 Kg
