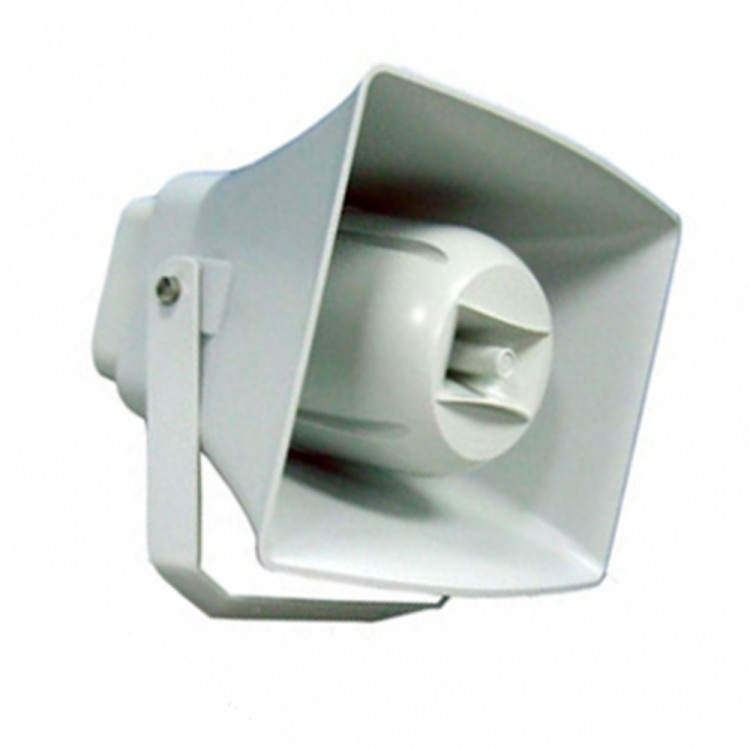

CS-6HT60BS is a high efficiency horn loudspeakers that provides excellent speech reproduction and sound distribution for a wide scope of indoor and outdoor applications. It is equipped with one 165 mm (6.5”) LF speaker and a 25.4 mm (1”) HF compression driver, able to provide an excellent speech intelligibility with tight dispersion, together with a good quality background music reproduction. CS-6HT60BS includes a transformer to operate on 100V and 70V constant voltage systems with selectable power. In compliance with EN 54-24:2008, it includes a ceramic terminal block and a thermal fuse and it is, therefore, suitable for the use in voice alarm systems. The ABS casing complies to UL 94V0 standard and provides IP66 protection, which makes this units suitable for both indoor and outdoor application in malls, exhibition centres, railway and bus stations, etc.
Technical Specifications;
System Type Horn Speaker
LF Speaker 6.5" Waterproof PP Woofer
HF Speaker 1" Compression Driver
Rated Noise Power 100h @ 100V 60 W
Rated Noise Power 100h @ 70V 30 W
Power rating @ 100V 60 / 30 / 15 / 7.5 W
Power rating @ 70V 30 / 15 / 7.5 / 3.75 W
Impedance 167 / 333 / 666 / 1.33k O
Connector Ceramic Terminal block
Power selection On Transformer Terminals
Measure Environment Free Field
Frequency Response (-10 dB) 200 - 20k Hz
Sensitivity at 1W (1 kHz, 1m / 4m) 102 / 100 dB
Sensitivity at 1W (Pink Noise 6dB Crest Factor, 1m / 4m) 99 / 87 dB
Max SPL (Pink Noise 6dB Crest Factor, 1m / 4m) 114 / 102 dB
Horizontal Coverage Angle at 500 / 1k / 2k / 4k Hz (-6dB) 105° / 50° / 80° / 80°
Vertical Coverage Angle at 500 / 1k / 2k / 4k Hz (-6dB) 140° / 70° / 90° / 150°
Cabinet White (RAL 9016)
Material ABS
Environmental Type B
Protection Degree IP66
Operating Temperature -25 ÷ +55 °C (-13 ÷ +131 °F)
Relative humidity <95%
Dimensions (mm) 418 x 332 x 391 (W x H x D)
Mounting on wall using supplied bracket
Weight 7.4 kg (16.3 lb)
Standard Compliance EN54-24:2008
Certification 1488-CPR-0315/W
