Direct radiation 21" subwoofer
Features

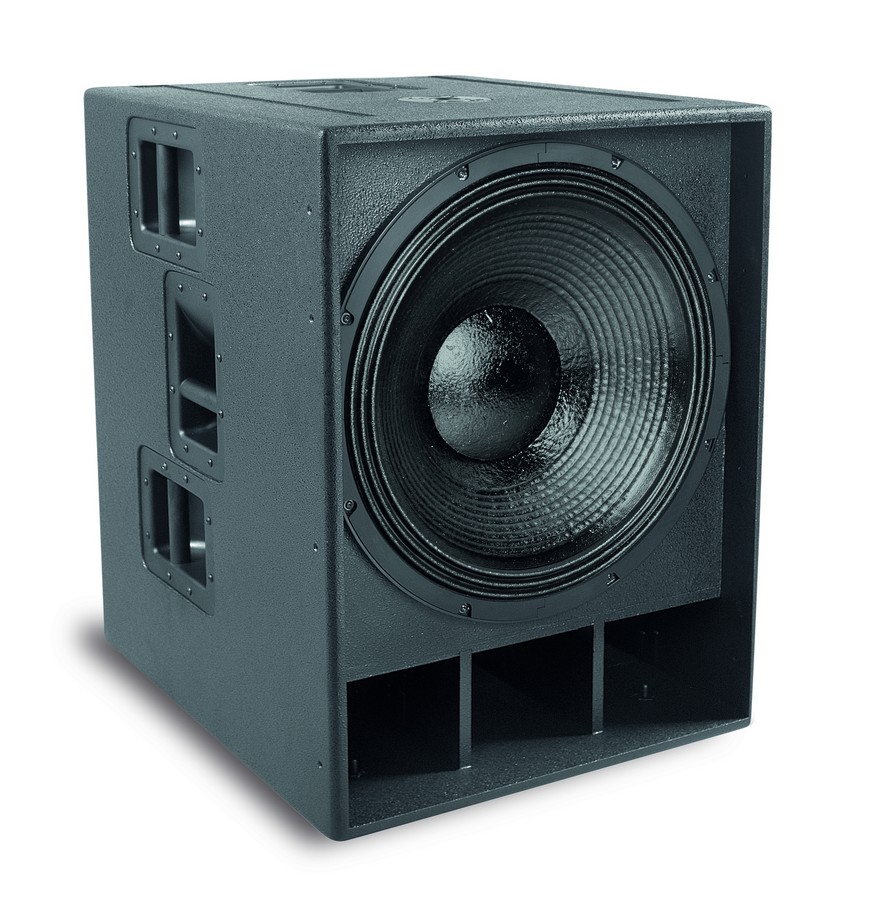

SW121P 21" direct radiating subwoofer completes bass response with an impressive excursion control and high power handling capability. SW121P is designed to work at 1500 W (AES) continuous power and can handle peaks 6 dB higher than that (up to 6000 W) without damage. Because of its heavy duty DSS (Double Silicon Spider) suspension system, its double demodulating ring (DDR) and its over damped housing, SW121P can provide a tremendous amount of defined and controlled low frequency energy.
EDGESW121P
TECHNICAL SHEET
System type: Direct radiation bass-reflex
Nominal Impedance: 8 ohm
Input power rating (AES): 1500 W
Input power rating (program): 3000 W
Frequency response: 32 Hz - 80 Hz (-3dB)
Sensitivity: 96 dB SPL ( 2.83V @ 1m )
Maximum (peak) Output: 131 dB @ 1m
Low Frequency Device: 21'' woofer – 5.3'' voice coil
Connectors: 2 Neutrik Speakon NL4MP paralleled, 1+ IN+, 1- IN-
Construction: 18 mm birch plywood, internally reinforced.
Finishing: Paint finish
Cabinet Colour: Black
Mounting Pole: 1 x top
Weight: 59 kg
Dimensions (W x H x D): 58.4 x 76.5 x 81.0 cm Dimensions (W x H x D): 58.4 x 76.5 x 81.0 cm Dimensions (W x H x D): 58.4 x 76.5 x 81.0 cm
