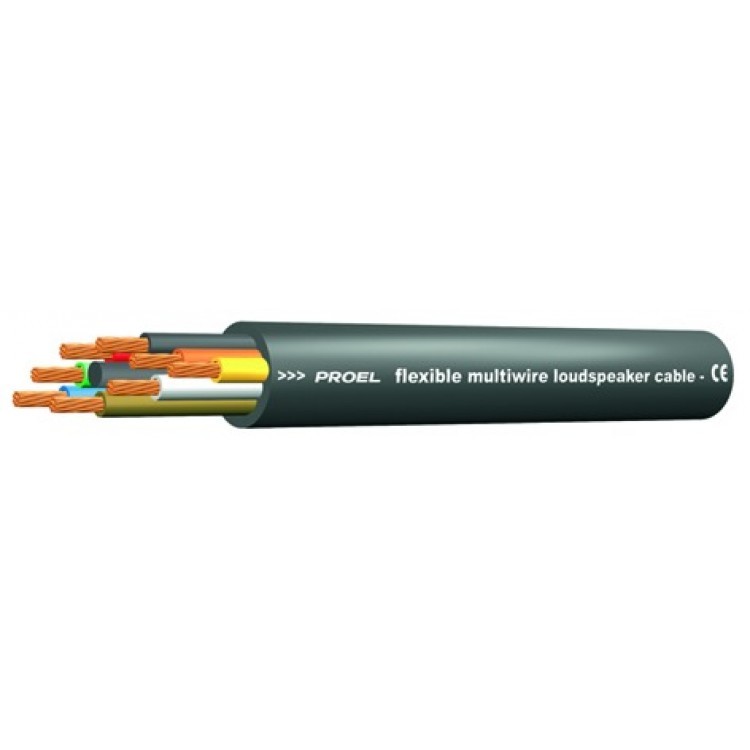

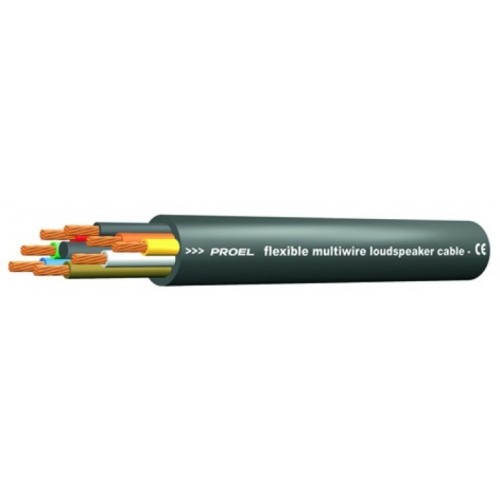

Flexible 8 twisted conductors speaker cable for passive loudspeakers - 8 x 2,5 mm2 section. Black colour.
Priced and sold by the Metre
Technical Specifications
•Application fields: Passive speaker connections / sound reinforcement / studio installation / live
•Conductors: Bare copper 14 AWG = 48x0,25 mm
•Lay up: eight conductors twisted in short concentric layers
•Insulation: flexible PVC 3,30 mm
•Jacket: Ultra - Flexible PVC – 60 Shore
•Overall diameter: 13,60 mm
•Cable section: 2,5 mm2/AWG14
•Electrical Resistance @ 20°C: 7,4 Ohm/Km (conductor)
•Electrical Capacitance @ 1 KHz: 100 pF/mt (conductor/conductor)
•Operating temperature: -20°C / +70°C
•Minimum bending radius: 10 x overall diameter
•Weight: 365 Kg/Km
•Colour: Black
•Packaging: 100 m wooden reel
