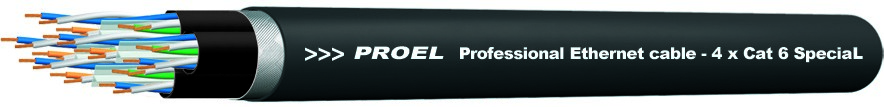

Professional cable for multiple ethernet connections. Combines 4 x CAT 6 cables, individually insulated then overall shielded by tinned copper braid. Particularly suitable for use in fixed installations. The outer sleeve is manufactured from flame resistant PVC.
TECHNICAL SPECIFICATIONS
Application fields: Digital connections
Conductors: 23 AWG - Solid bare copper wires - 0.573mm approax
Insulation: Single conductors: PE - 0 1,02 mm approx./Single cables: PVC - 0 6,40 mm approx
Overall shield: Tinned copper braid coverage 80%
Outer Jacket: Flame resistant PVC Ø 20.0 mm approx
Colour: Matt Black
Electrical resistance: 88 Ohm/Km (conductor) @ 20°C
Electrical capacitance: 53 pF/mt (cond./cond.) @1 KHz
Operating temperature: -20°C/+70°C
Weight: 460 Kg/Km
Minimum bending radius: 15 mm x overall diameter
Packaging: custom packaging
