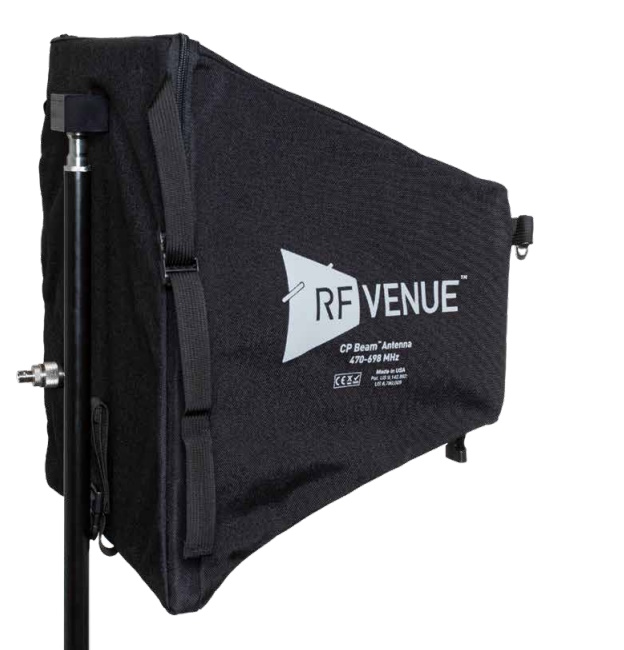

The CP Beam™ Antenna is a lightweight, circularly polarized antenna that doesn’t drop out and is designed to ensure a consistent signal with in-ear monitors (IEMs), wireless microphone systems, and other UHF communication devices.
The CP Beam is easy to set up and transport – fitting in a 3RU rack drawer and weighing just 2.5 lbs – and compresses for easy storage. Unlike other bulky helical antennas that require flight cases, the CP Beam is quickly deployed and stowed.
RF Venue
Features
Electrical
Operating frequency .............................. 470–698 MHz
Bandwidth............................................... 228 MHz
Average return loss ............................... -13.15 dB
Impedance .............................................. 50?
Pattern type............................................ Beam
Polarization ............................................ RHCP
Azimuth X
Beam width............................................. 63°
F/B ratio.................................................. -10 dB
F/S ratio .................................................. -12 dB
Beam width............................................. 70°
F/B ratio.................................................. -9 dB
F/S ratio .................................................. -12 dB
Squint...................................................... < 2 dB
Gain........................................................ . 9 dBd
Physical
Length..................................................... 355mm / 14”
Height...................................................... 355mm / 14”
Weight..................................................... 1100g / 2.5lb
Mount threads ........................................ 1/4-20, 3/8-16, 5/8-27
Operating temperature.......................... -23–54°C / -9–130°F
Color ....................................................... Black fabric
Connector(s)........................................... N female (BNC supplied)
