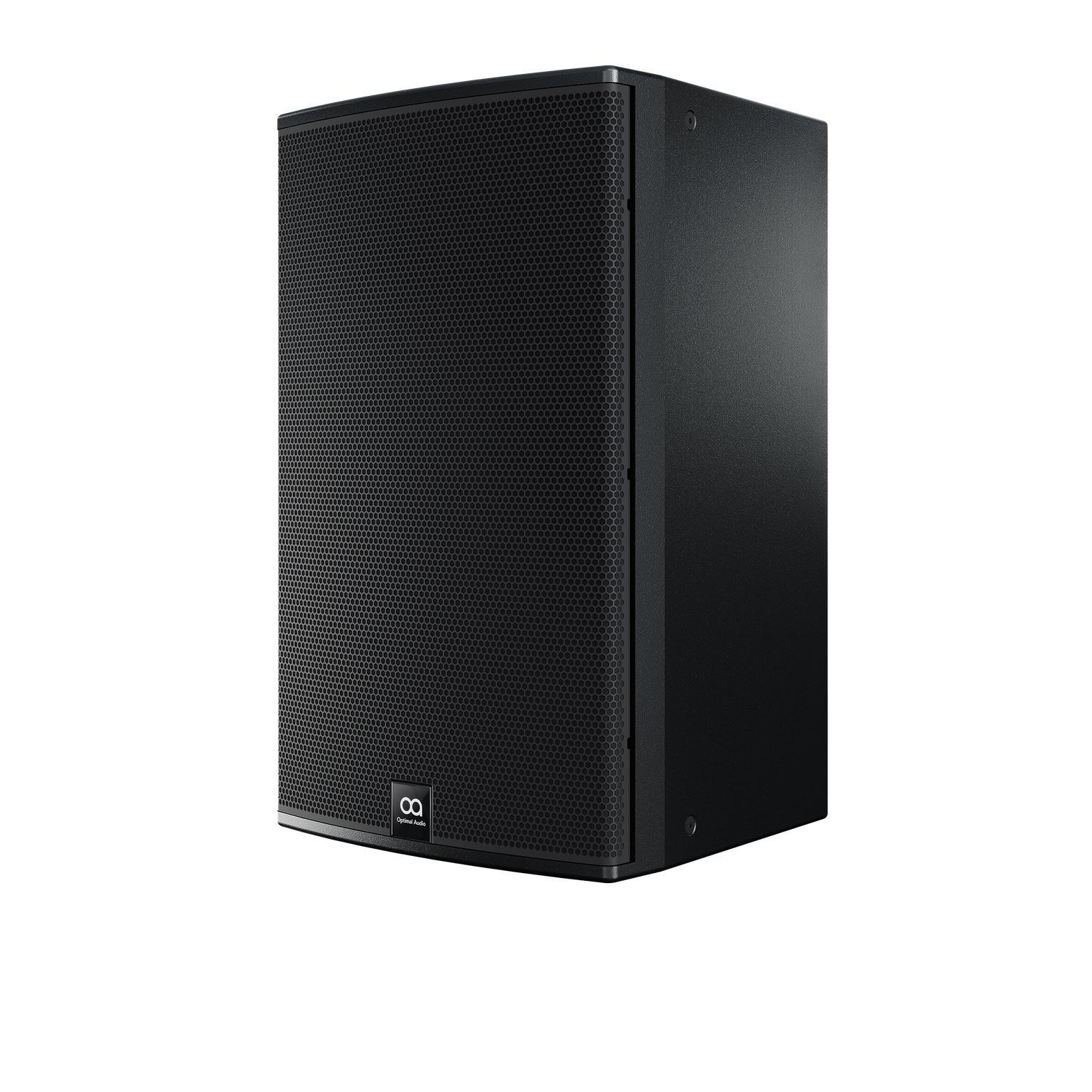

Cuboid 15 is a full range, two way, passive, 15” loudspeaker designed to perform. For any applications requiring big output, it effortlessly delivers rich and detailed sound with extra punch and precision. With its wooden cabinet, steel grille and optional mounting hardware the professionally presented Cuboid 15 can be fixed in either portrait or landscape mode for a flexible, simple installation
Cuboid 15 features a 15” (380mm) low frequency (LF) driver for extra bass and midband with a 1” (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user rotatable horn. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive
FEATURES
• Wooden cabinet
• Portrait or landscape mounting options
• Rotatable high frequency horn
• 58Hz - 18kHz frequency response ±3dB
• Maximum SPL 126dB (continuous), 132dB (peak)
• 80° horizontal x 50° vertical coverage
SPECIFICATIONS
TYPE Two way, full range, passive loudspeaker
FREQUENCY RESPONSE (with preset) 58Hz - 18kHz ± 3dB -10dB @ 40Hz
DRIVERS LF: 15” (380mm), ferrite motor system HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER 500W (AES) 2000W (peak)
NOMINAL IMPEDANCE 8 Ohm
SENSITIVITY (1W/1m) 99dB
MAXIMUM SPL 126dB (cont), 132dB (peak)
CROSSOVER 2.3kHz passive
DISPERSION (-6dB) 80° H x 50° V (user rotatable)
ENCLOSURE Trapezoid wooden cabinet
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type
PIN CONNECTIONS (INPUT) 1+/1
FITTINGS 19 x M8, inset bolts
DIMENSIONS (W) 426.5mm x (H) 691.5mm x (D) 416mm (W) 16.79” x (H) 27.22” x (D) 16.38”
WEIGHT 28kg (61.73lbs)
ACCESSORIES (available separately) Wall Bracket C, U Bracket D, M8 Eye Bolt
RECOMMENDED SUB Sub 15
