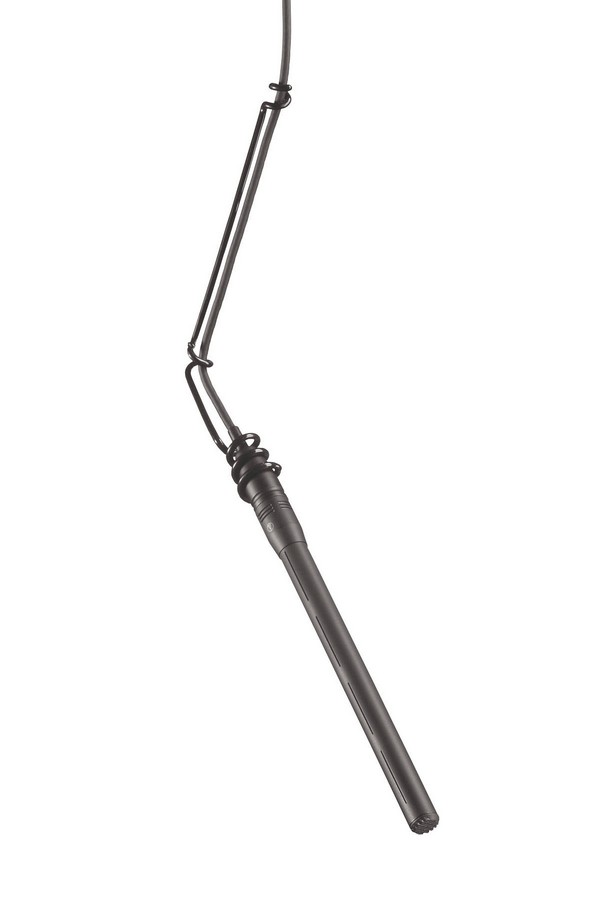

Featuring Audio-Technica’s UniLine® line cardioid element, the U853RU UniLine condenser hanging microphone is equipped with UniGuard® innovations that offer unsurpassed immunity from radio frequency interference. The phantom-powered microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line-cardioid polar patterns. Its 80 Hz low-cut UniSteep® filter reduces pickup of low-frequency ambient noise.
Designed for suspension over choirs, instrumental groups and theater stages
UniLine® polar pattern provides narrow 90° acceptance angle
Superior off-axis rejection for maximum gain before feedback
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
Low-profile design with low-reflectance finish for minimum visibility
Available in two colors: black (U853RU) and white (U853RWU)
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Line Cardioid
FREQUENCY RESPONSE 30-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY –35 dB (17.7 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 135 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 115 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 74 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
SWITCH Flat, roll-off
WEIGHT (MICROPHONE) 30 g
WEIGHT (POWER MODULE) 81 g
DIMENSIONS (MICROPHONE) 156.0 mm long, 12.2 mm diameter
DIMENSIONS (POWER MODULE) 92.9 mm long, 18.9 mm diameter
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
CABLE 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS UE-C cardioid (120°); UE-H hypercardioid (100°); UE-O omnidirectional (360°)
ACCESSORIES FURNISHED AT8154 two-stage foam windscreen; AT8451 steel hanger; AT8538 power module; AT8438 5/8"-27 stand adapter AT8451 steel hanger; AT8538 power module; AT8438 5/8"-27 stand adapter
