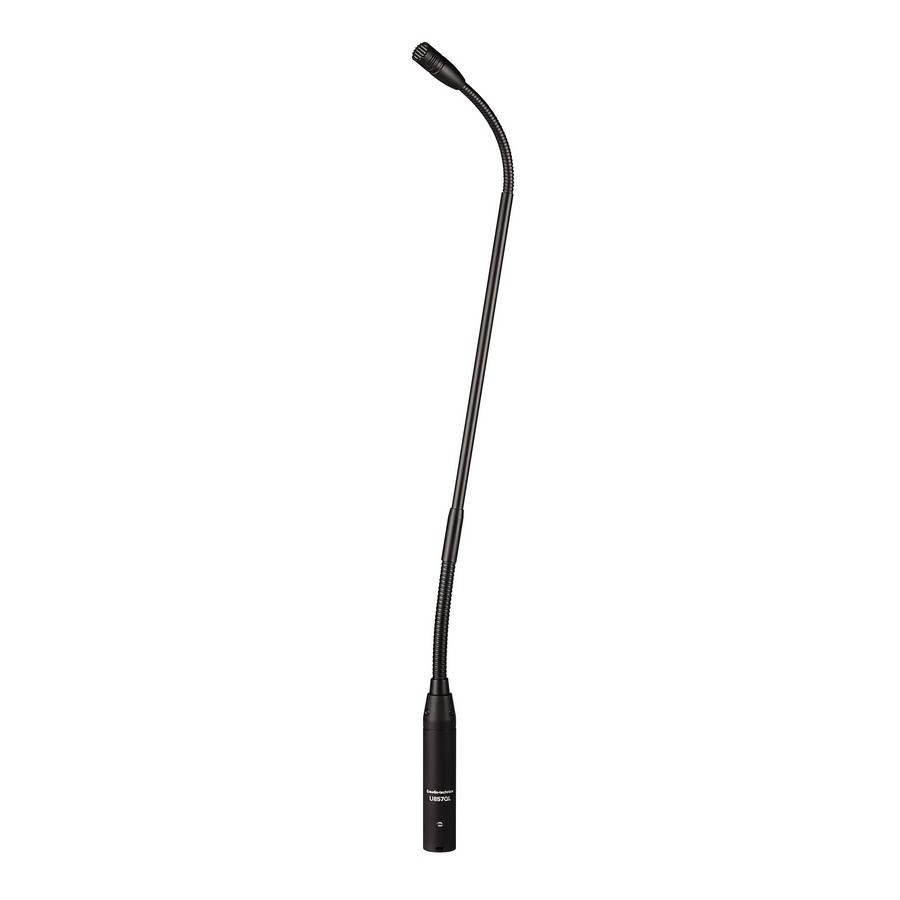

The 18.94" version of the U857Q, the U857QL cardioid condenser quick mount gooseneck microphone is designed to plug directly into a panel or desk mounted XLRF type connector. The microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard® innovations. It features an ultra flexible small diameter gooseneck and accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns. Equipped with self contained electronics, the phantom powered microphone also offers an 80 Hz low cut UniSteep® filter that reduces pickup of low frequency ambient noise
Designed for high quality sound reinforcement, professional recording and broadcasting
Superior off axis rejection for maximum gain before feedback
UniGuard® RFI shielding technology offers outstanding rejection of radio frequency interference (RFI)
Easy to adjust, rugged, small diameter, alternating gooseneck with virtually no “memory” permits quick positioning into desired shape
UniSteep® filter provides a steep low frequency attenuation to improve sound pickup without affecting voice quality
Self contained electronics eliminate need for external power module
Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
Accepts UEH(HYPERCARDIOID) UEO(OMNI) UEUL(SHOTGUN) Capsules
Two stage foam windscreen yields dramatically improved resistance to pops and other breath blasts
Quick mount design with 3 pin XLRM type connector insert at base plugs into any standard XLRF type surface or cable connector
ELEMENT Fixed charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 30-20,000 Hz
LOW FREQUENCY ROLL OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY –39 dB (11.2 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 139 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (TYPICAL) 115 dB, 1 kHz at Max SPL
SIGNAL TO NOISE RATIO 70 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
SWITCH Flat, rolloff
WEIGHT 150 g
DIMENSIONS 481.0 mm long, 12.2 mm head diameter, 18.9 mm base diameter
OUTPUT CONNECTOR Integral 3 pin XLRM type
OPTIONAL INTERCHANGEABLE ELEMENTS UE-H hypercardioid (100°); UE-O omnidirectional (360°); UE-UL UniLine® (90°)
AUDIO-TECHNICA CASE STYLE M35
Shock Mounts sold separately
AT8662
AT8646QM
AT8647QMS
AT8699
AT899R base diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
OPTIONAL INTERCHANGEABLE ELEMENTS UE-H hypercardioid (100°); UE-O omnidirectional (360°); UE-UL UniLine® (90°)
AUDIO-TECHNICA CASE STYLE M35 DYNAMIC RANGE (TYPICAL) 115 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 70 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
SWITCH Flat, roll-off
WEIGHT 5.3 oz (150 g)
DIMENSIONS 18.94" (481.0 mm) long, 0.48" (12.2 mm) head diameter, 0.74" (18.9 mm) base diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
OPTIONAL INTERCHANGEABLE ELEMENTS UE-H hypercardioid (100°); UE-O omnidirectional (360°); UE-UL UniLine® (90°)
ACCESSORIES FURNISHED AT8153 two-stage foam windscreen; AT8662 shock mount
