Designed to deliver easy, flexible control in conference and boardroom installations, the versatile U891R cardioid condenser boundary microphone features an activation switch that can be set to three modes: press-on/press-off, press to talk, and press to mute. The phantom-powered microphone is equipped with a unique PivotPoint® rotating output connector and an LED status indicator. UniGuard® innovations offer unsurpassed immunity from radio frequency interference; interchangeable elements are available in cardioid, hypercardioid and omnidirectional polar patterns; an 80 Hz low-cut UniSteep® filter reduces pickup of low-frequency ambient noise. The microphone’s heavy die-cast case and silicon foam bottom pads minimize coupling of surface vibration to the microphone. The unit’s self-contained electronics eliminate the need for an external power module.
Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
An activation switch can be set to any of three operating modes: “touch-on/ touch-off,” “touch-to-talk” and “touch-to-mute”

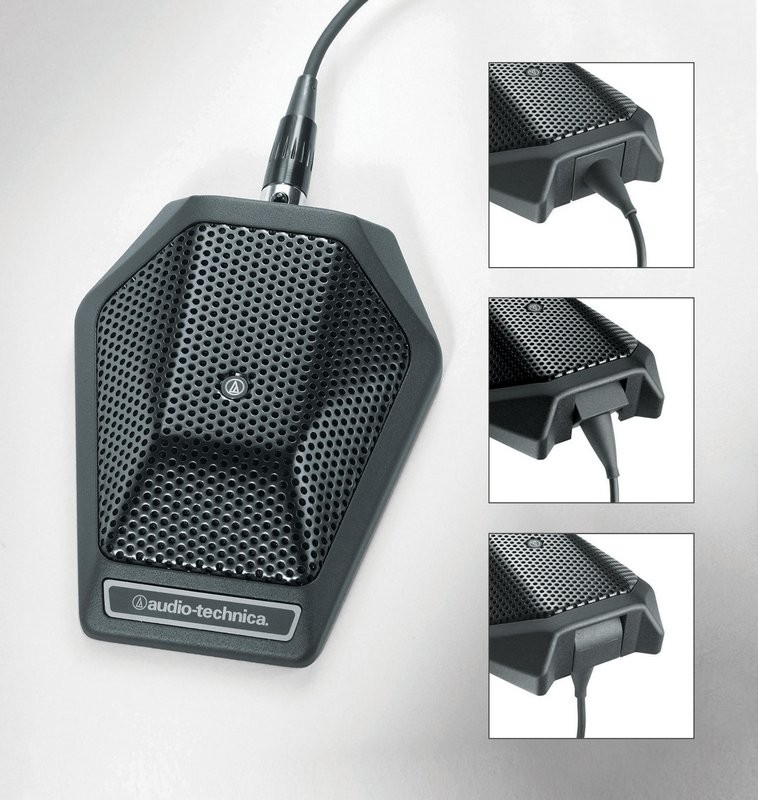

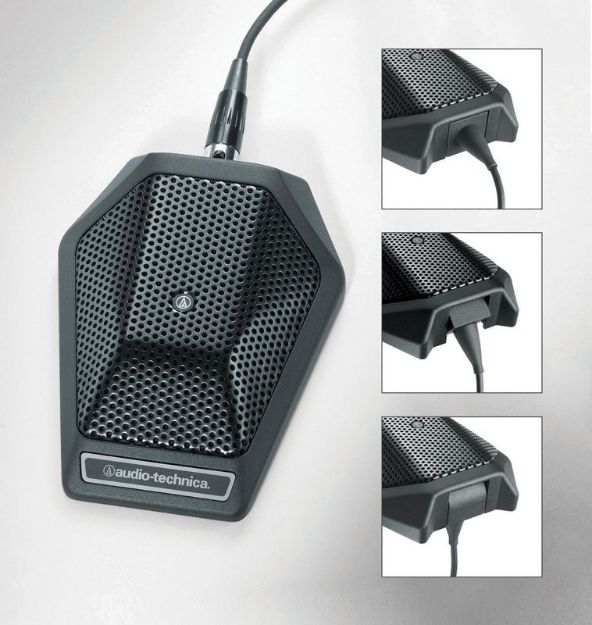

PivotPoint® rotating output connector allows cable to exit from either the rear or the bottom of the microphone
Superior off-axis rejection for maximum gain before feedback
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Small-diameter UniPoint® capsule near boundary eliminates phase distortion and delivers clear, high-output performance
Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
Low-profile design with low-reflectance finish for minimum visibility
Improved switch design
Available in two colors: black (U891Rx) and white (U891RWx)
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Half-cardioid (cardioid in hemisphere above mounting surface)
FREQUENCY RESPONSE 30-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY –34 dB (19.9 mV) re 1V at 1 Pa
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL 130 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 104 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 68 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 4 mA typical
SWITCHES Activation: on/off; Switch function: press on/off, momentary on, momentary off; Flat, roll-off
WEIGHT 264 g
DIMENSIONS 108.0 mm maximum length, 84.0 mm maximum width, 23.0 mm maximum height
OUTPUT CONNECTOR TB3M-type
CABLE 7.6 m long, 3.2 mm diameter, 2-conductor, shielded cable with TA3F-type and XLRM-type connectors
OPTIONAL INTERCHANGEABLE ELEMENTS UE-O omnidirectional (360°) UE-H hypercardioid (100°)
ACCESSORY FURNISHED Soft protective pouch WEIGHT 264 g
DIMENSIONS 108.0 mm maximum length, 84.0 mm maximum width, 23.0 mm maximum height
OUTPUT CONNECTOR TB3M-type
CABLE 7.6 m long, 3.2 mm diameter, 2-conductor, shielded cable with TA3F-type and XLRM-type connectors
OPTIONAL INTERCHANGEABLE ELEMENTS UE-O omnidirectional (360°) UE-H hypercardioid (100°)
ACCESSORY FURNISHED Soft protective pouch ACCESSORY FURNISHED Soft protective pouch
