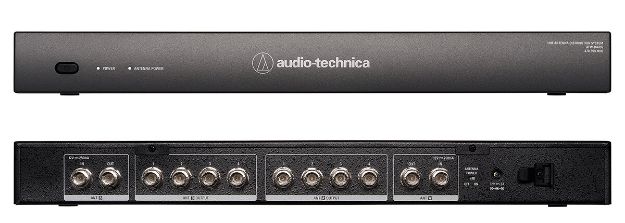

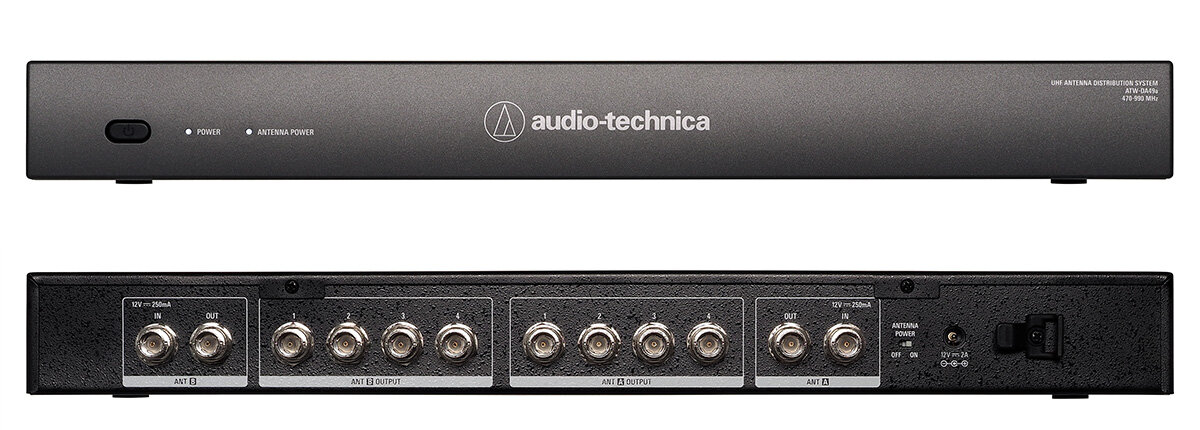

ATWDA49 Antenna Distribution System UHF Active 440-900 MHz

SKU: ATWDA49A
UOM: ea

Your Price:

$840.67 excl GST GST EXCL.
$966.77 GST INC.

RRP:

$868.70 GST EXCL.
$999.00 excl GST GST INC.
1 in 4 Out Services up to four 3000 series Receivers
Availability: 3 low stock
+ -
A standard class of Wireless distribution system that covers wideband and can be used commonly for AT Wireless

. Feature
Cover 470-990MHz with one model.
Enable one pair of antenna to feed multiple Wireless system (1in 4out + 1cascade out) x 2.
High OIP3 to restrain to intermodulation
Provide antenna power 250mA max from each antenna input.

Specification (Technical Data)
Model Name ATW-DA49a
Input /Output 2x 1 inputs, /2x 4outputs, plus 2x1 cascade outputs
Input/ Output Connector type BNC
Frequency Range 470-990MHz
OIP3 +32dBm(IIP3)
RF Output Gain +1.0dB±1.5dB
Input /Output Gain +1.0dB±1.5dB
Output Port Isolation >18dB at 400 ~ 1000 MHz
Filter Selection Low sideband=35 dB
High sideband= 25dB, up to 2GHz
Antenna Input Power Supply per channel 12V DC,250mA max
Power Supply DC12V 2A
Power Output -
Current Consumption 200mA±50mA at 12V DC
Dimension (W x H x D) 420 x 44 x 190mm(TBD)
Weight 1.5kg(TBD)

. Included Accessories
BNC cable(50cm) x 8
Rubber foot x4
Rack ears
AC adaptor (without AC cable)
Quick start guide
WEE/China RoHS
RED (State of compliance)
