With its low profile design that mounts unobtrusively in tabletops for minimum visibility, the ES945/LED omnidirectional condenser boundary microphone provides clear, highly intelligible audio that is perfect for sound reinforcement, professional recording and teleconferencing, television and other demanding sound pickup applications.
Protected by a rugged all metal case with a two-layer steel mesh grille, the microphone’s omnidirectional polar pattern affords a 360° pickup angle, while its UniGuard® RFI shielding technology provides outstanding rejection of radio frequency interference (RFI). Users can easily toggle between mute and live audio thanks to the microphone’s capacitive type touch sensitive switch. An integral Red/Green LED ring indicates the mute status, staying green when the microphone is live and turning red when it is muted.
Additionally, the ES945/LED is equipped with a self contained power module with an XLRM type output connector, eliminating the need for an external power module.

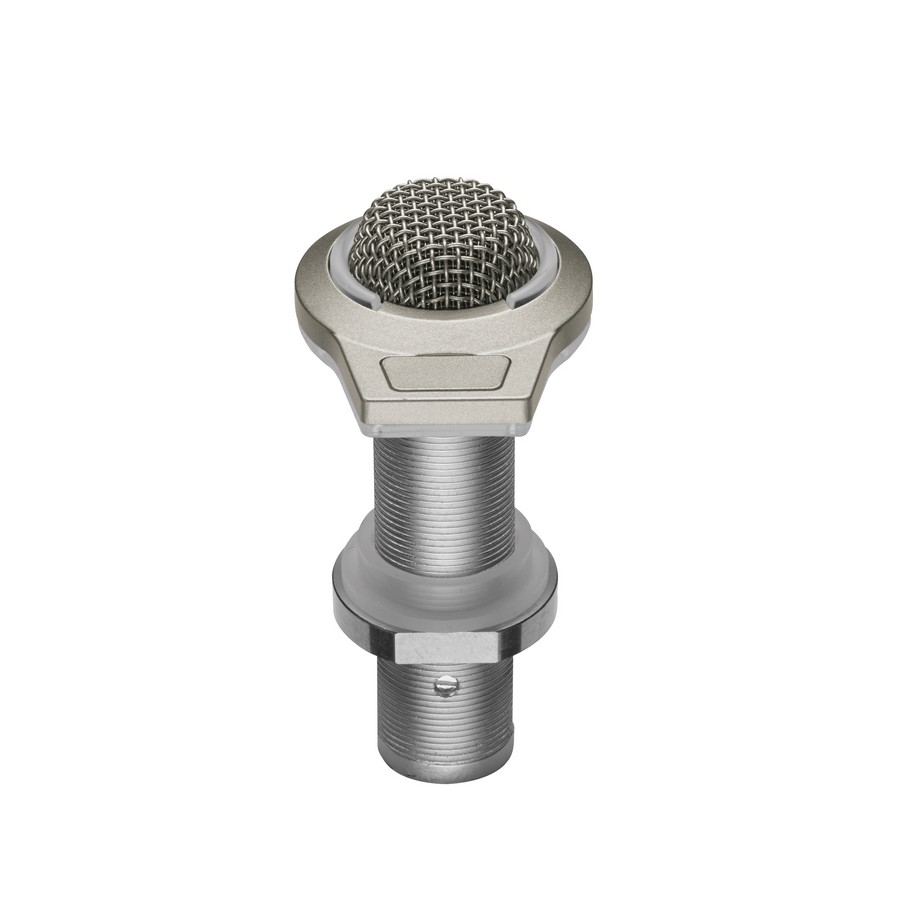

The microphone is available in two colours: black (ES945/LED) and silver (ES945SV/LED). A pair of isolators is included for optional mechanical isolation from the mounting surface.
Mounts unobtrusively in tabletops
Capacitive type touch sensitive switch allows users to easily mute/un-mute the microphone
Integral bi colored LED ring indicates mute status – stays green when mic is live, turns red when muted
Low profile element provides uniform omnidirectional polar pattern with 360° acceptance angle
Self contained power module with XLRM type output connector
UniGuard® RFI shielding technology offers outstanding rejection of radio frequency interference (RFI)
Requires 11V to 52V DC phantom power
Rugged all metal case with a two layer steel mesh grille
Isolators provide mechanical dampening of mounting surface vibration
Available in two colours: black (ES945/LED) and silver (ES945SV/LED)
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Omnidirectional
FREQUENCY RESPONSE 40-19,000 Hz
OPEN CIRCUIT SENSITIVITY –40 dB (10 mV) re 1V at 1 Pa
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL 142 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 113 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 5.7 mA typical
SWITCH Touch sensitive control: on/mute
WEIGHT 65 g (2.3 oz)
DIMENSIONS 84.8 mm (3.33") long, 38.0 mm (1.49") diameter, 48.0 mm (1.89") maximum width
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORY FURNISHED One pair isolators
