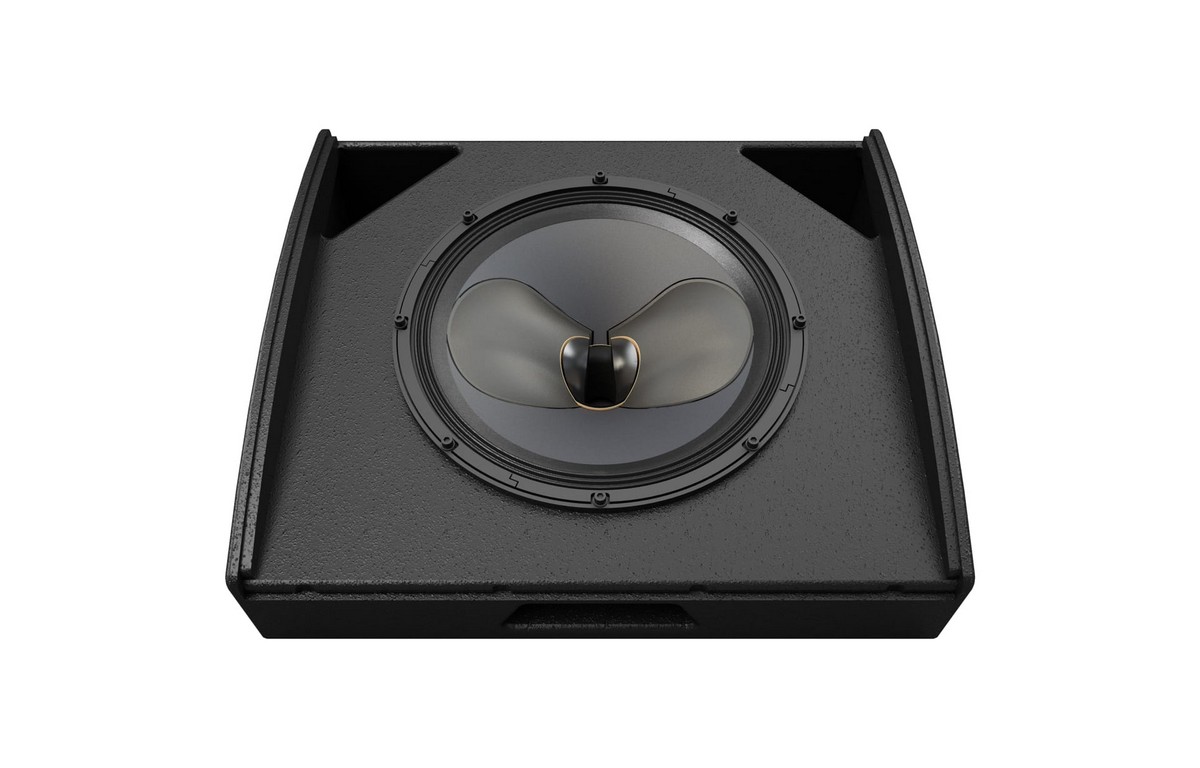

Combining very high output capability with Martin Audio’s signature sonic performance and consistent coverage, the LE200 is the ultimate, everyday professional monitor. Its Coaxial Differential Dispersion drive unit comprises a powerful 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.
Features
Compact, two way stage monitor
Coaxial ‘point source’ performance
Differential Dispersion™ technology for consistent coverage
Defined, near rectangular coverage plane at head height
Switchable active/passive operation
Low profile plywood enclosure
M8 rigging inserts
Multiple connectors for flexible deployment
FREQUENCY RESPONSE 68Hz-18kHz ± 3dB,-10dB @ 50Hz
DRIVERS;
LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1.4” (32mm) exit/3” (75mm) voice coil, titanium dome compression driver
RATED POWER 400W AES, 1600W peak
SENSITIVITY;
LF: 100dB, HF: 103dB
Passive: 100dB
MAXIMUM SPL 133dB peak
NOMINAL IMPEDANCE
LF/FR: 8Ohm HF: 8Ohm
DISPERSION (-6dB) 100°-60° horizontal, 60° vertical
CROSSOVER 1.2kHz active/passive (switchable)
ENCLOSURE Birch/poplar ply
FINISH Black textured paint
GRILLE Black perforated steel with scrim cloth backing
BAFFLE ANGLE 30°
CONNECTORS 4 x NL4 type
PIN CONNECTIONS
LF/FR: 1+/- HF: 2+/-
FITTINGS 2 x pocket handles, Protective rubber feet on base and sides, 4 x M8 inserts
DIMENSIONS (W) 610mm x (H) 364mm x (D) 562mm
DIMENSIONS INCLUDING FEET (W) 616mm x (H) 367mm x (D) 562mm
WEIGHT 26kg DIMENSIONS INCL FEET (W) 616mm x (H) 367mm x (D) 562mm
WEIGHT 26kg DIMENSIONS (W) 610mm x (H) 364mm x (D) 562mm (W) 24.0 ins x (H) 14.3 ins x (D) 22.1 ins
DIMENSIONS INCL FEET (W) 616mm x (H) 367mm x (D) 562mm (W) 24.2 ins x (H) 14.4 ins x (D) 22.1 ins
WEIGHT 26kg (57.3lbs)
