Features

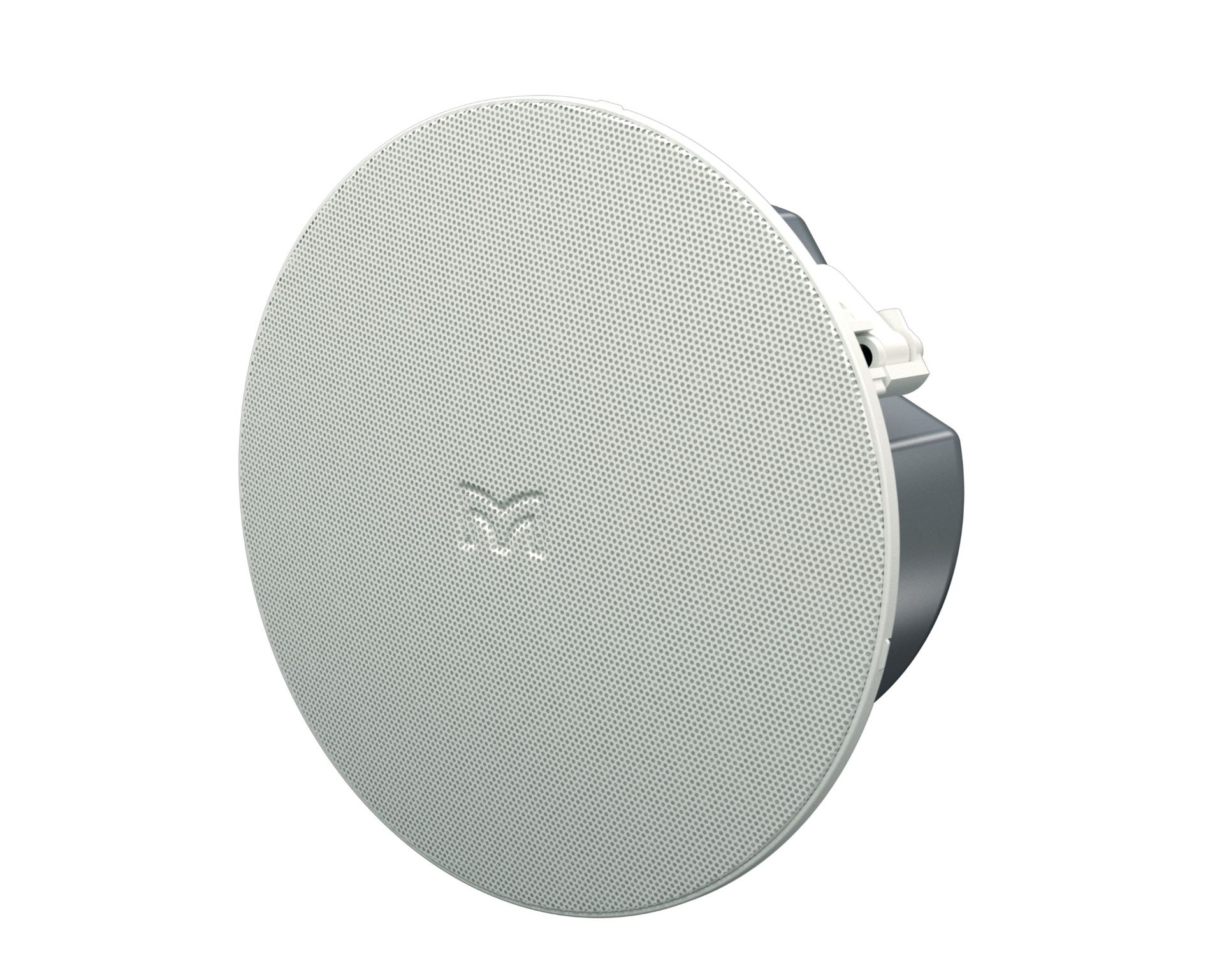

High performance two way ceiling speaker
4” (100mm) LF driver and 0.75” (19mm) HF dome tweeter
Very wide 180° conical coverage pattern reduces speaker count required for even coverage
70V/100V multitap line transformer or 16 Ohm low impedance operation
Low and high frequency overload protection
UL94V-0 rated baffle with zinc plated steel backcan
Quick release, bezel less grille
Tile rails and C ring included
5 year warranty
Specifications
TYPE Ultra compact, passive two way ceiling speaker, ported bass reflex
FREQUENCY RESPONSE 106Hz-20kHz ± 3dB -10dB @ 73Hz
DRIVERS
LF: 4” /1” high temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
HF: 0.75” silk dome, neodymium motor
RATED POWER 40W AES, 160W peak
RECOMMENDED AMPLIFIER VIA2004 (for low impedance operation)
SENSITIVITY 86dB / 1W(4V) / 1m
MAXIMUM SPL 108dB peak
NOMINAL IMPEDANCE 16O
DISPERSION (-6DB) 180° conical up to 10kHz
CROSSOVER 3.5 kHz passive (LF and HF auto resetting fuses)
TRANSFORMER TAPS
70V: 20w / 10w / 5w / 2.5w
100V: 20w / 10w / 5w
RECOMMENDED HIGH PASS FILTER 75Hz 24dB/oct
ENCLOSURE UL 94V-0 rated ABS baffle with steel backcan
FINISH Baffle and grille: RAL9016 white Backcan: zinc plated
GRILLE Perforated steel, powder coated, bayonet fitting
CONNECTORS Ceramic connector (in and link) located behind fire retardant steel cover
ACCESSORIES (INCLUDED)
2 tile rails
C-ring backing plate
Cut out template
DIMENSIONS
(OD) 221mm x (D) Back Can 97mm, (D) Inc. Grille 115mm
WEIGHT 2.2kg WEIGHT 2.2kg (4.8lbs)
