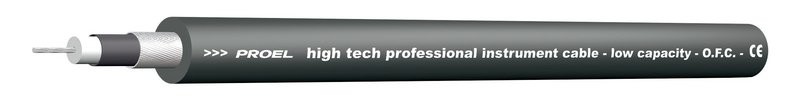

Coaxial cable featuring a very thick pure copper shield, designed for connecting guitars, keyboards, amplifiers, mixers, effect pedals and any audio signal processing devices. Very low capacitance, strong and flexible overall jacket, double shielding with conductive thermoplastic material and very thick copper braid. A thick PEE insulation makes it an ideal cable for all applications liable to mechanical tensions of the cable (e.g. guitar/amplifier connection). Black colour
Priced and sold by the Metre
Technical Specifications
Application fields: Musical instrument connection / Multieffect/mixer connection
•Conductors: Tinned copper - 18 AWG = 42 x 0.15 mm (0.75 mm2)
•Insulation: PEE Ø 3.10 mm
•Shield: (cable) Tinned copper braid 8x16x0.10 90%
•Jacket:
•Conductor: High-conductive graphite jacket Ø 2.40 mm
•Cable: Flexible non-slip PVC 64 shore Ø 7.00 mm
•Colour: Black
•Electrical resistance:
•37 Ohm/Km (conductor) @ 20°C
•20 Ohm/Km (shield) @ 20°C
•Electrical capacitance: 120p F/m (conductor/shield) @ 1 KHz
•Velocity of propagation: 80 %
•Operating temperature: -20°C / +70°C
•Working tension:
•< 50 V AC
•< 75 V DC
•Weight: 59 Kg/Km
•Minumum bending radius: 20 x cable section radius
•Packaging: 100 m reel
