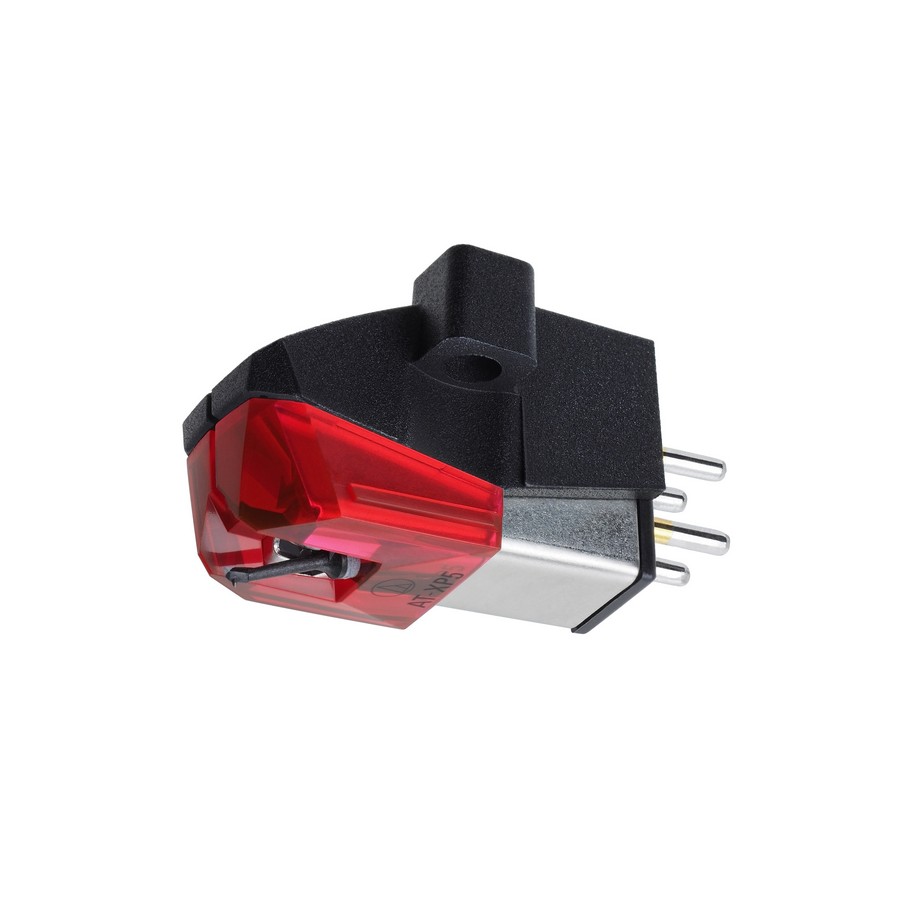

The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
0.3 x 0.7 mil elliptical bonded stylus tip
Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
6.0 mV high-output level
Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
Stainless wire suspension, double-layered rubber damper and tapered aluminum cantilever ensure precise tracking
Design offers maximum visibility of the stylus tip
Great tracking and channel separation for high-fidelity sound
Frequency Response 20-20,000 Hz
Channel Separation 22 (dB at 1 kHz)
Vertical Tracking Force 2.0-4.0 g (3.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Output 6.0 mV (1 kHz, 5 cm/sec.)
Channel Balance 2.0 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil elliptical
Cantilever Aluminum tapered pipe
Mount Half-inch
Replacement Stylus ATN-XP7
Coil impedance: 6.7 k ohms (1 kHz)
DC resistance: 990 ohms
Recommended load capacitance: 100 to 200 pF
Coil inductance: 1.0 H (1 kHz)
Vertical tracking angle: 20°
Dimensions: 17.2 mm H × 17.8 mm W × 28.3 mm D
Weight: 6.2 g Weight: 6.2 g (0.22 oz)
